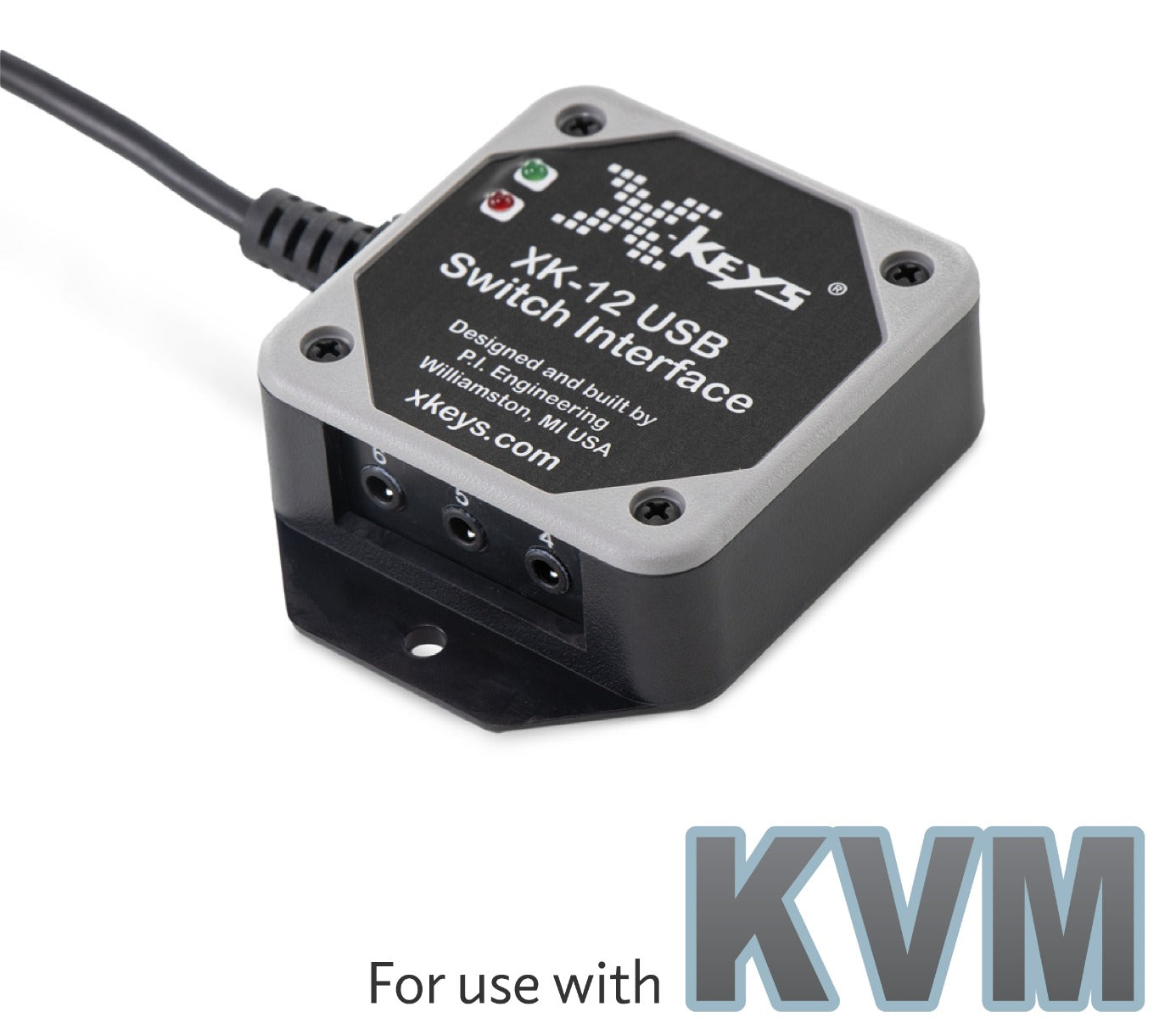

USB 12 KVM Switch Interface

Specifically designed to work for KVM switches

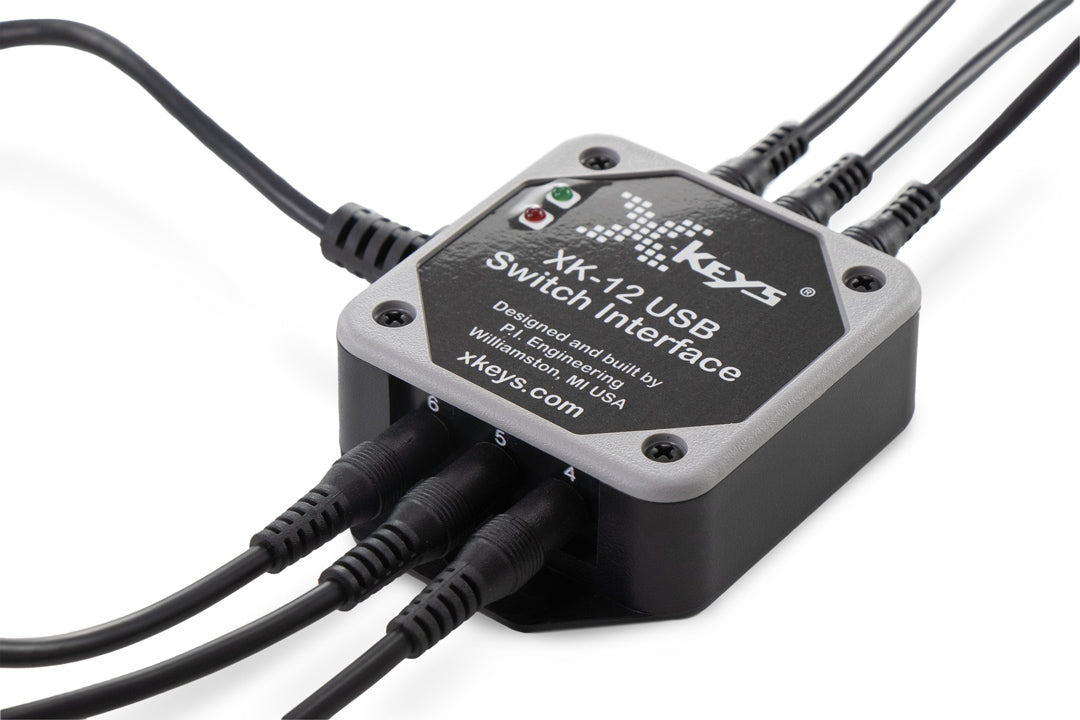

6 dual switch ports (12 switches with optional splitter cords)

Connect to the USB port just like a USB keyboard

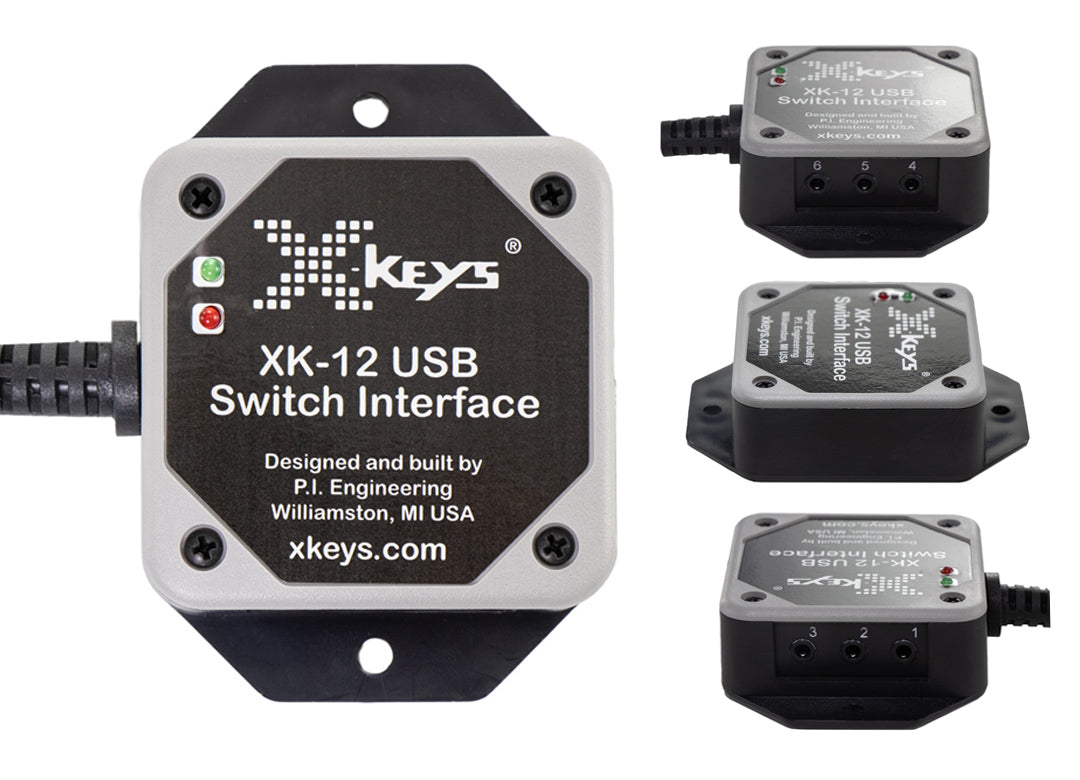

Convenient mounting flanges

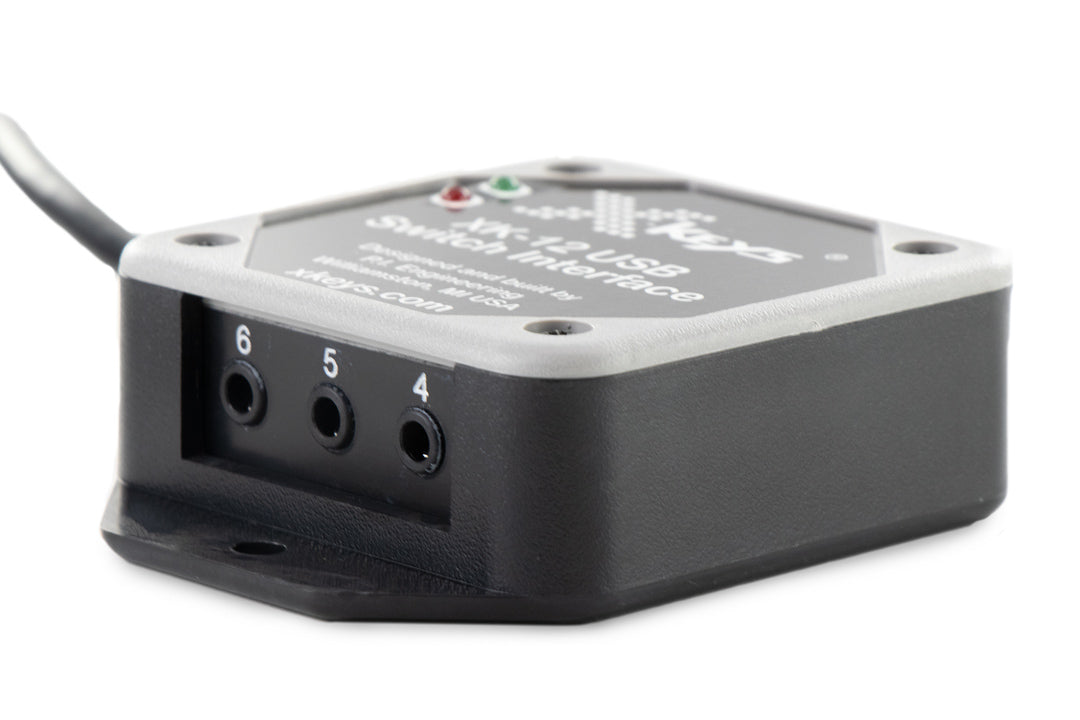

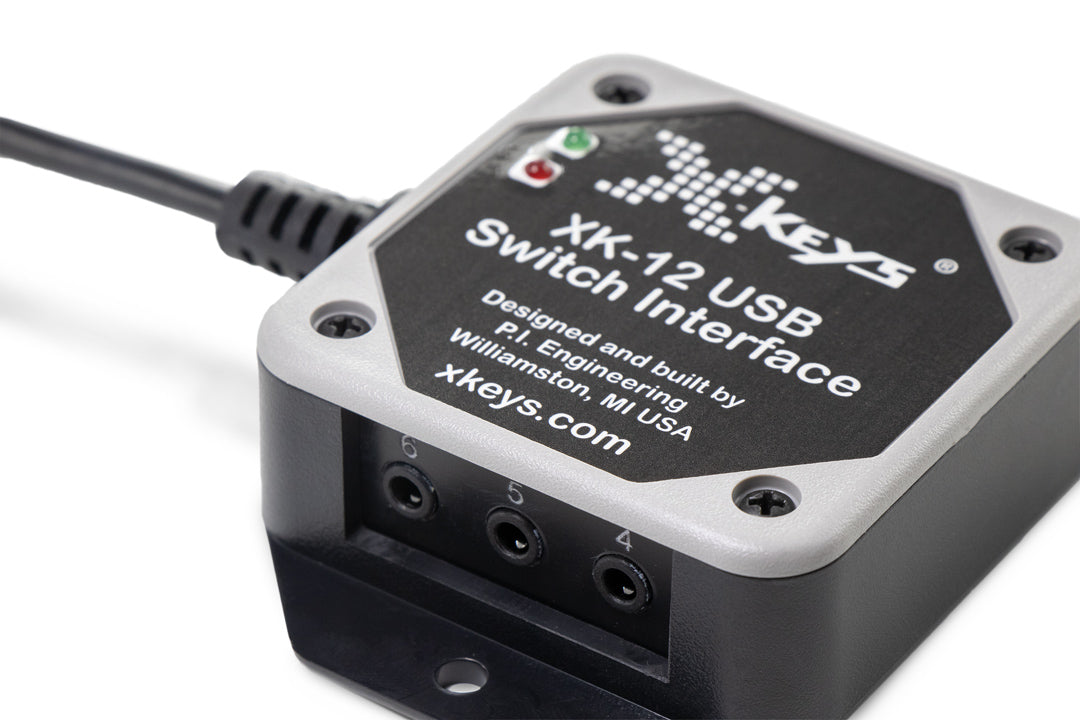

Standard 3.5mm audio type switch ports

Supports mono and stereo type switch plugs

Any contact closure can be converted to a USB HID command

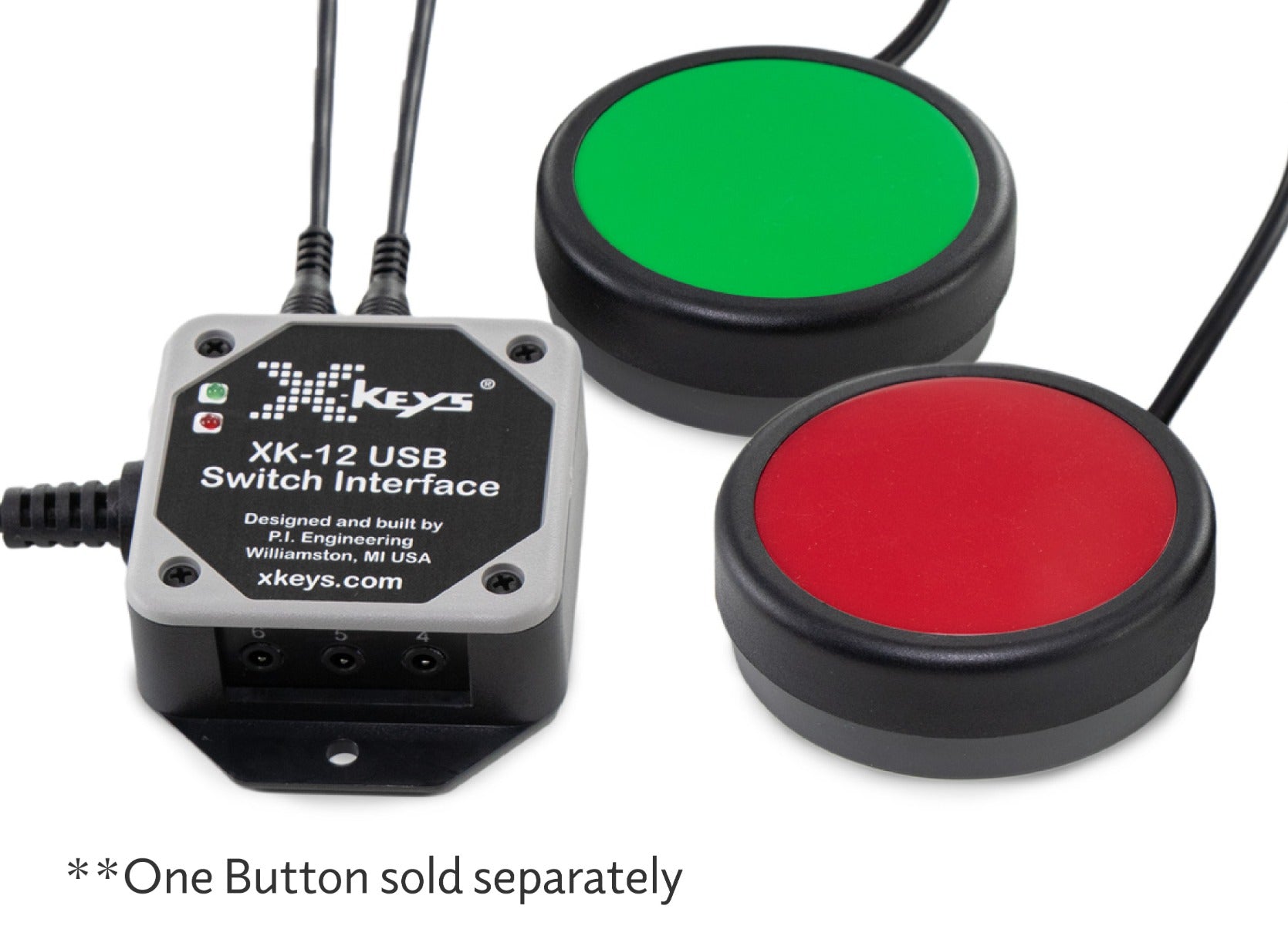

Choose from our selection of hand or foot operated switches or use

Operating System: Use any OS via USB HID | Programming: Windows XP through 11, Mac OS 10.14 – Mac OS 13

Free Programming Software: Windows: MacroWorks 3.1

USB Codes Supported: HID keyboard, HID mouse, HID game controller, HID multimedia

Port Types: 3.5mm stereo (accepts 3.5mm mono or stereo plug)

Number of Ports: 6 ports (split to 12 with optional Y cords)

Optional Accessories: Wired switches, Y cords, or USB Extender

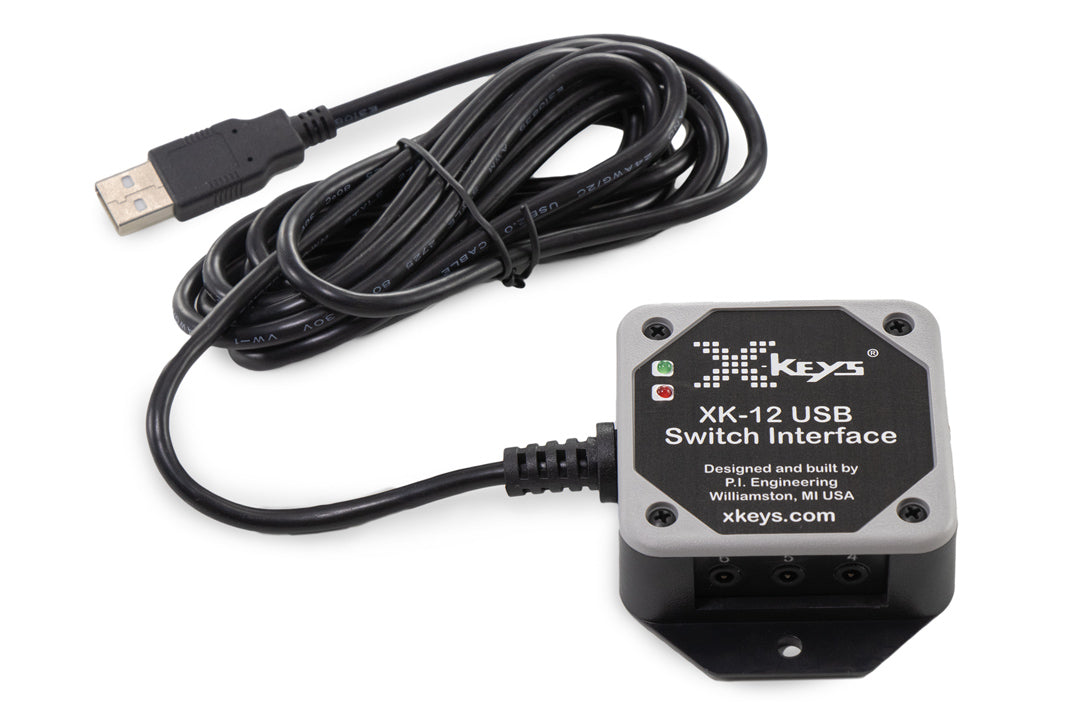

Connector: Wired USB standard “A” plug

Cord Length: 118" (3 m)

Wiring Distance: Up to 1,000 feet (300 m) from switch to port

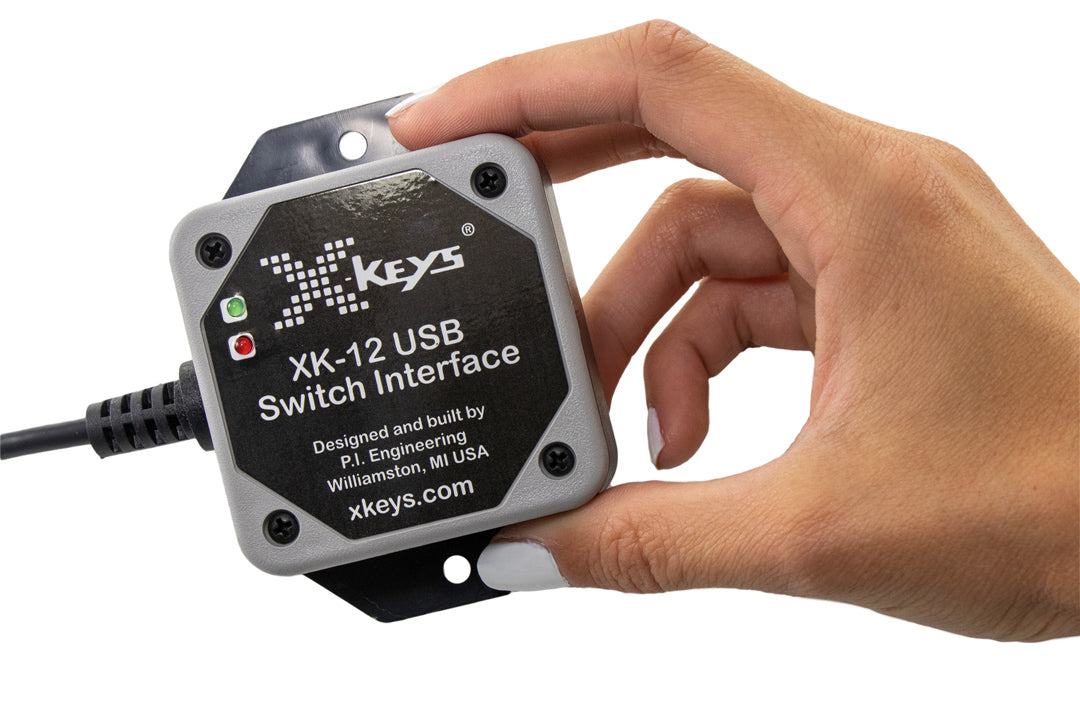

Dimensions: 2.55” x 2.55” x 1.01” (65 mm x 65 mm x 26 mm)

Mounting: Two 0.19” DIA mounting holes, 3” O.C. (4.8 mm DIA, 76 mm O.C.)

Weight: 6 oz. (160 g)

USB Type: USB 1.1 compatible through 3.0 Type-C with adapter

Power Source: USB port, nominal voltage = 5 VDC

Power Consumption: 31 mA @ 5 VDC

Temperature Range: -20 to 60 °C

Memory Capacity: Approximately 1,100 keystrokes or commands in onboard memory

Memory Type: EEPROM, non-volatile memory (X-keys retains memory for over 200 years)

Environmental Rating: IP 40, typical indoor office environment

Certifications: FCC class B, CE, RoHS, WEEE compliant
