X-keys

USB 3 KVM Switch Interface

Name: USB 3 KVM Switch Interface
Brand: X-keys
SKU: XK-1446-UKVM3-SO
Price: 74.95 USD
Availability: InStock

SKU: XK-1446-UKVM3-SO

$74.95

Quantity:

Description

This version of our USB 3 Switch Interface is configured to work with KVM (Keyboard Video Mouse) switches to control multiple computers from a single work station. Any keyboard combination or string of keystrokes can have a designated switch. The X-keys emulates a standard USB keyboard and eliminates issues with most KVM input limitations.

Please note: KVM version X-keys send pure USB HID keyboard codes and are intended for use only with hardware that does not have a traditional operating system behind it (like a KVM). If the X-keys will be connected directly to a Windows, OS X, or Linux computer, our standard X-keys products may be better suited to fit your requirements.

Features

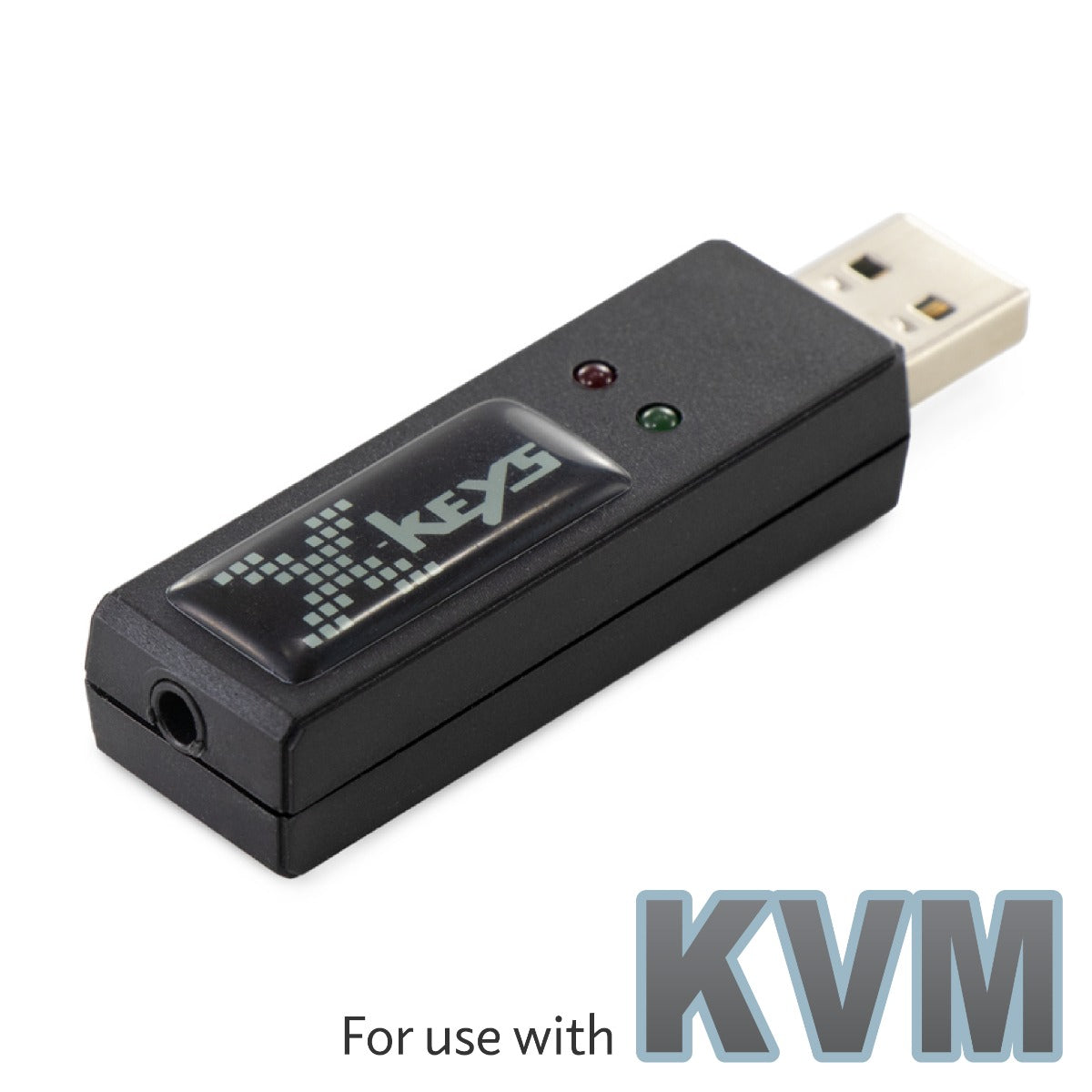

Specifically designed to work with KVM switches

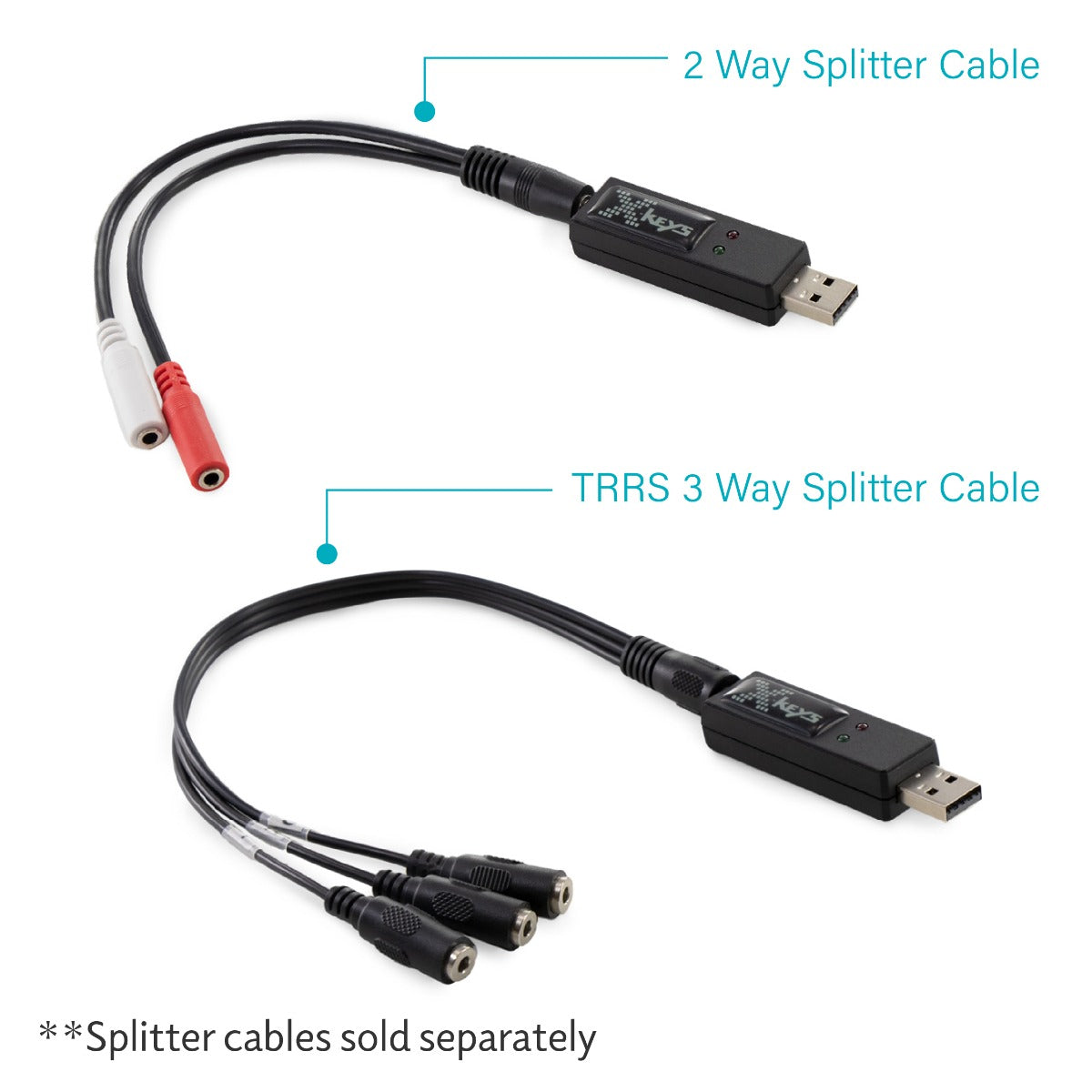

Up to three switches via 3.5 mm TRRS port with optional adapter

Connects to any USB port just like a USB keyboard

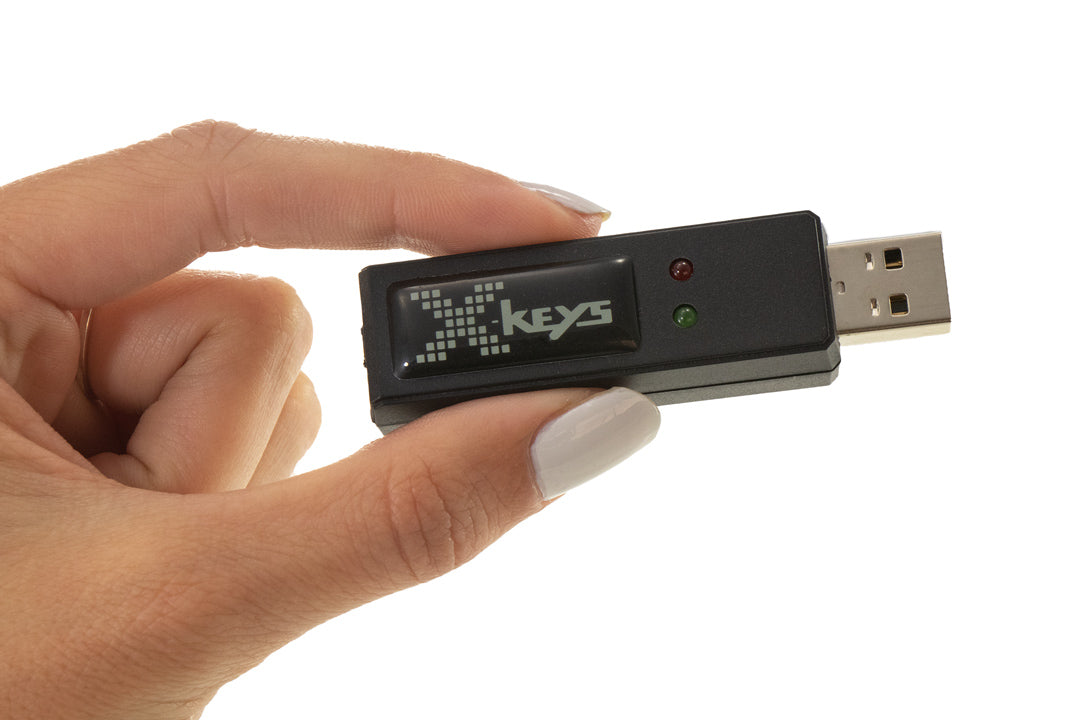

Compact - smaller than a pack of chewing gum

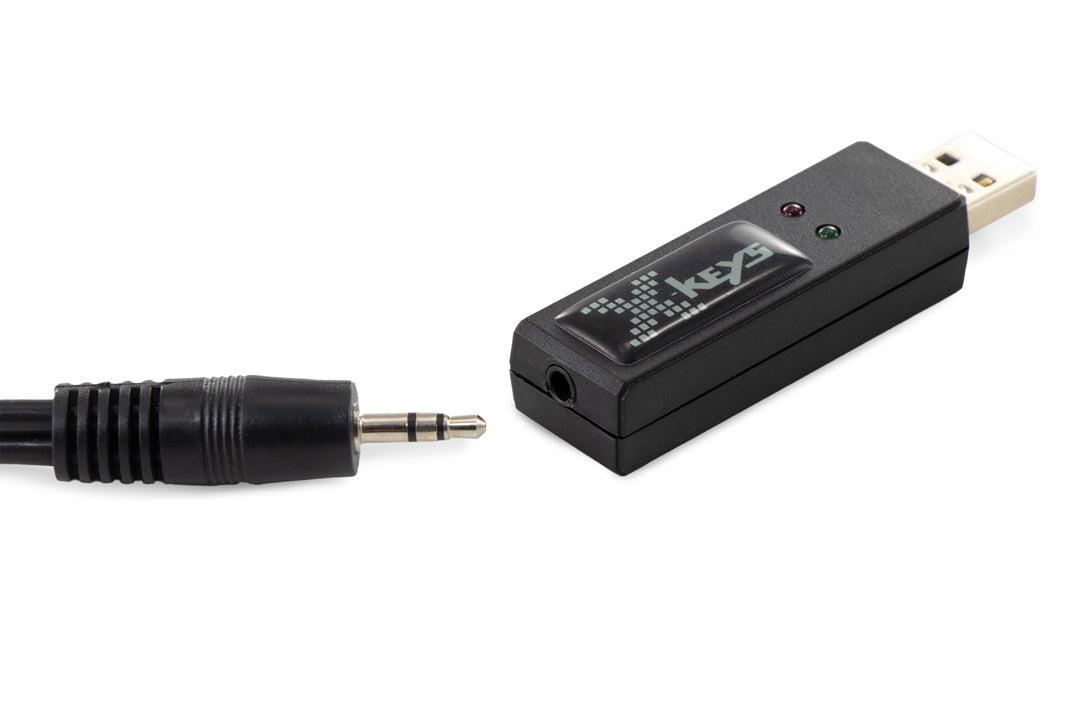

Accepts 3.5 mm mono, stereo, or TRRS plugs

Any contact closure can be converted to a USB HID command

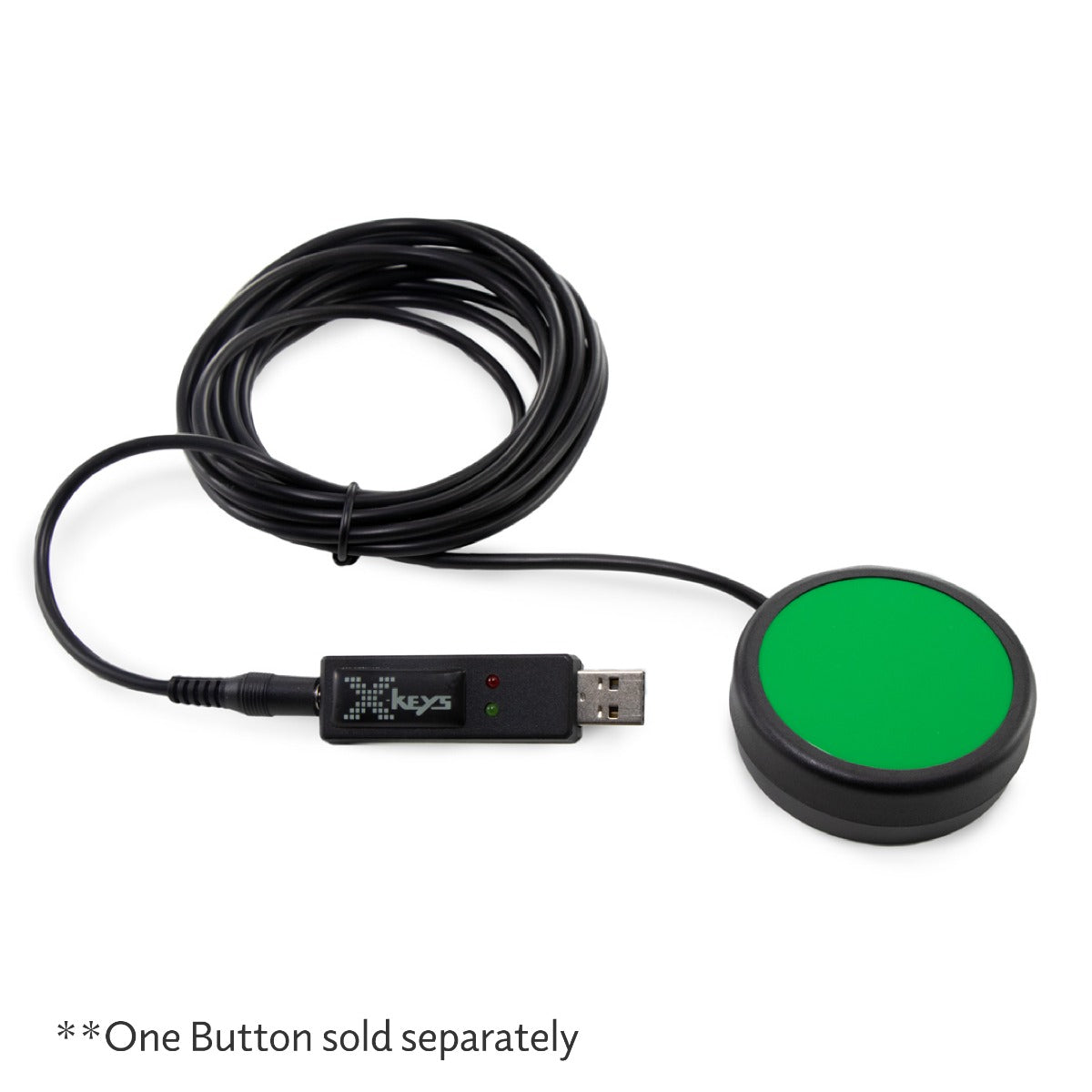

Choose from our selection of hand or foot operated switches or use your own

No software required for operation

Specs

Operating System: Any OS supporting USB HID Keyboard: Windows, Mac, Linux, Android

Emulation Modes: HID keyboard

Port Type: 3.5mm TRRS (Tip-Ring-Ring-Sleeve) accepts 3.5mm mono, stereo, or TRRS plug

Number of Ports: 1 TRRS (Tip-Ring-Ring- Sleeve) port - may be split to accept up to three switches

Optional Accessories: Wired switches, Y cords, or USB Extender

Connector: USB standard “A” plug

Wiring Distance: Up to 1,000 feet (300m) from switch to port

Dimensions: 2.8” x 0.75” x 0.5” (71mm x 19mm x 13mm)

Weight: 0.8 oz. (3 g)

USB Type: USB 1.1 compatible through 3.0 Type-c with adapter

Power Source: USB port, nominal voltage = 5 VDC

Power Consumption: 21 mA @ 5 VDC

Temperature Range: -20 to 60 °C

Memory Capacity: Approximately 1,100 keystrokes or commands

Memory Type: EEPROM, non-volatile memory (X-keys retains memory for over 200 years)

Environmental Rating: IP40, typical indoor office environment

Certifications: FCC class B, CE, RoHS, WEEE compliant

Programming

All X-keys devices can be easily programmed on Windows or Mac using our free software. You can assign keystrokes, shortcuts, or macros with just a few clicks—no coding required.

For advanced users, we also offer free SDKs for deeper software integration.

For full programming tutorials, downloads, and advanced setup options, visit our Software Page.

X-keys USB 3 KVM Switch Interface

$74.95

Quick Start Guide

Getting Started

USB 3 KVM Switch Interface
