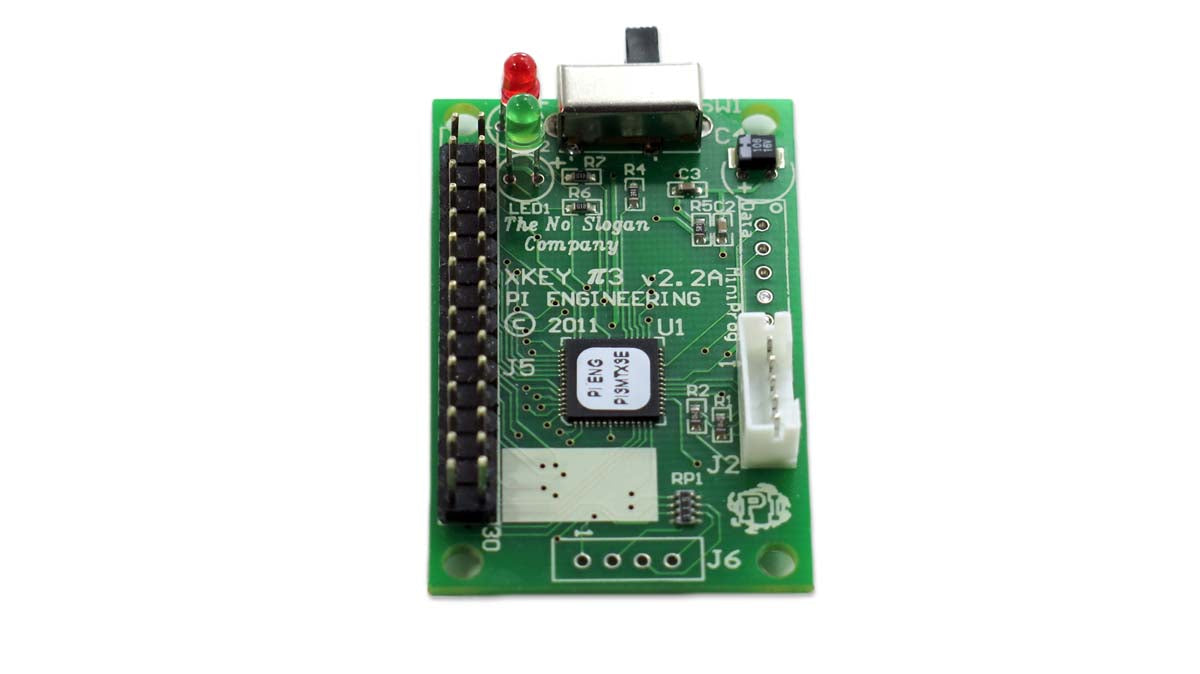

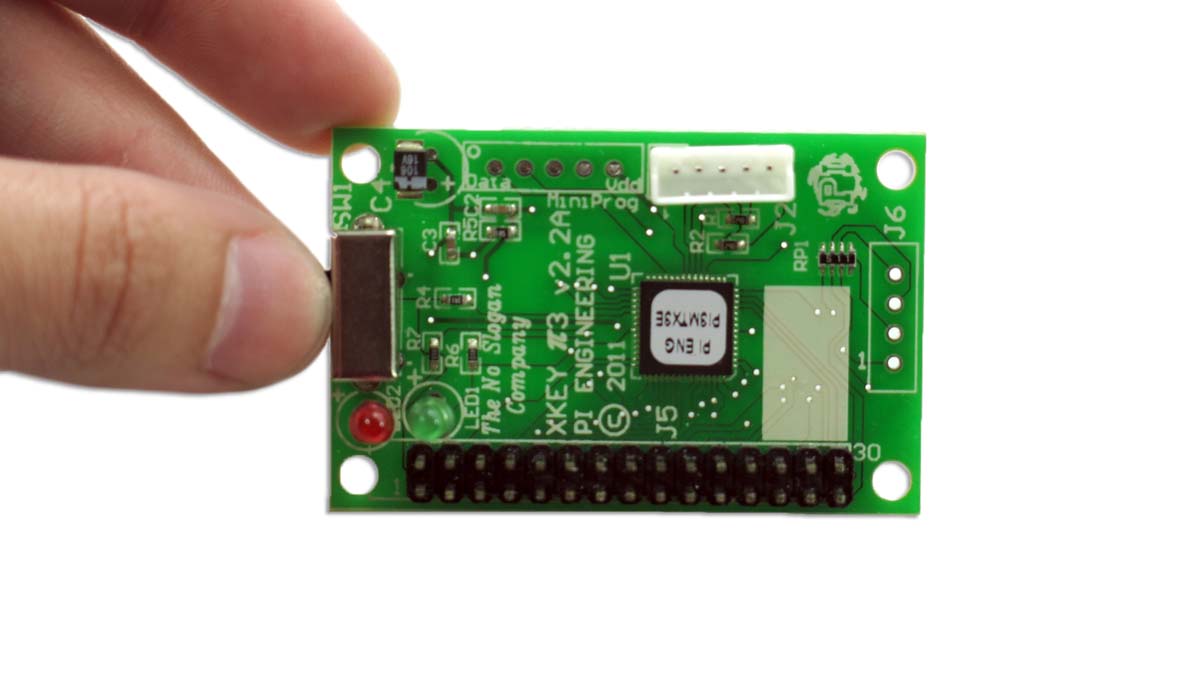

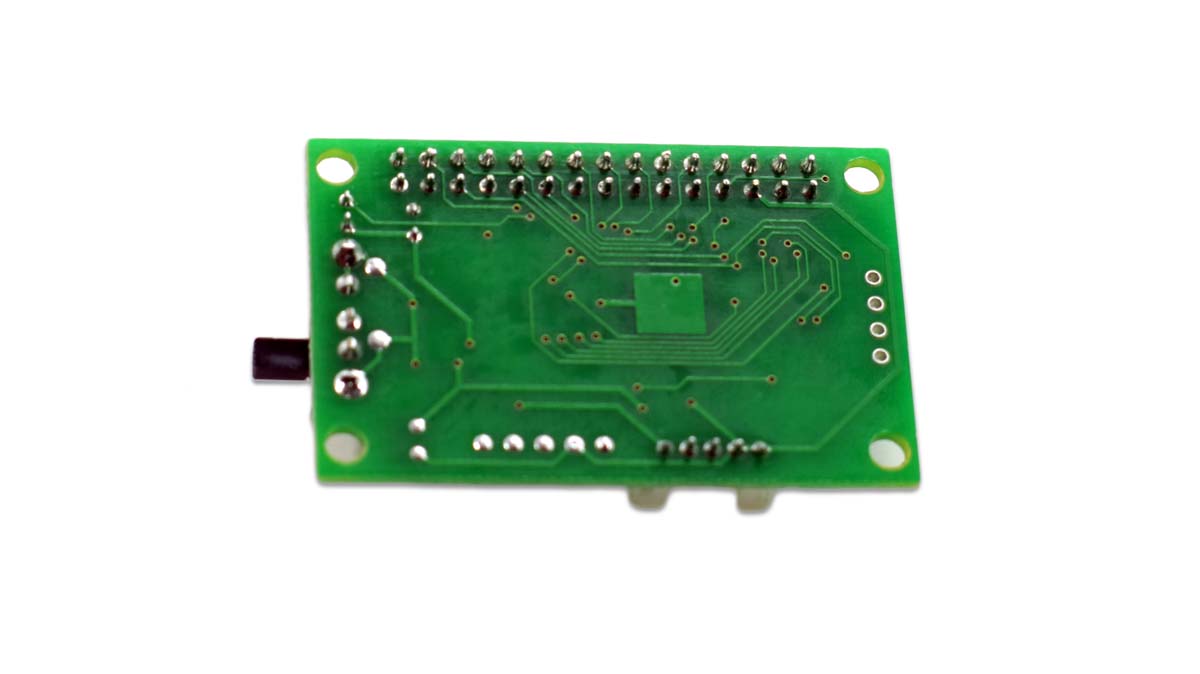

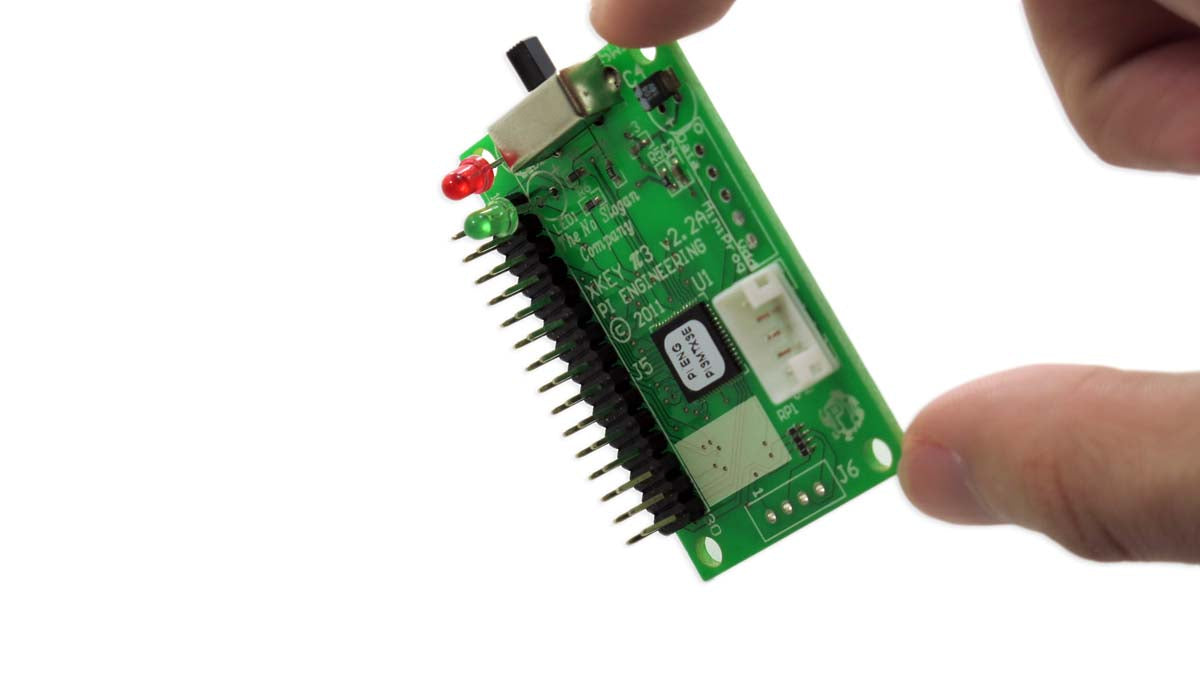

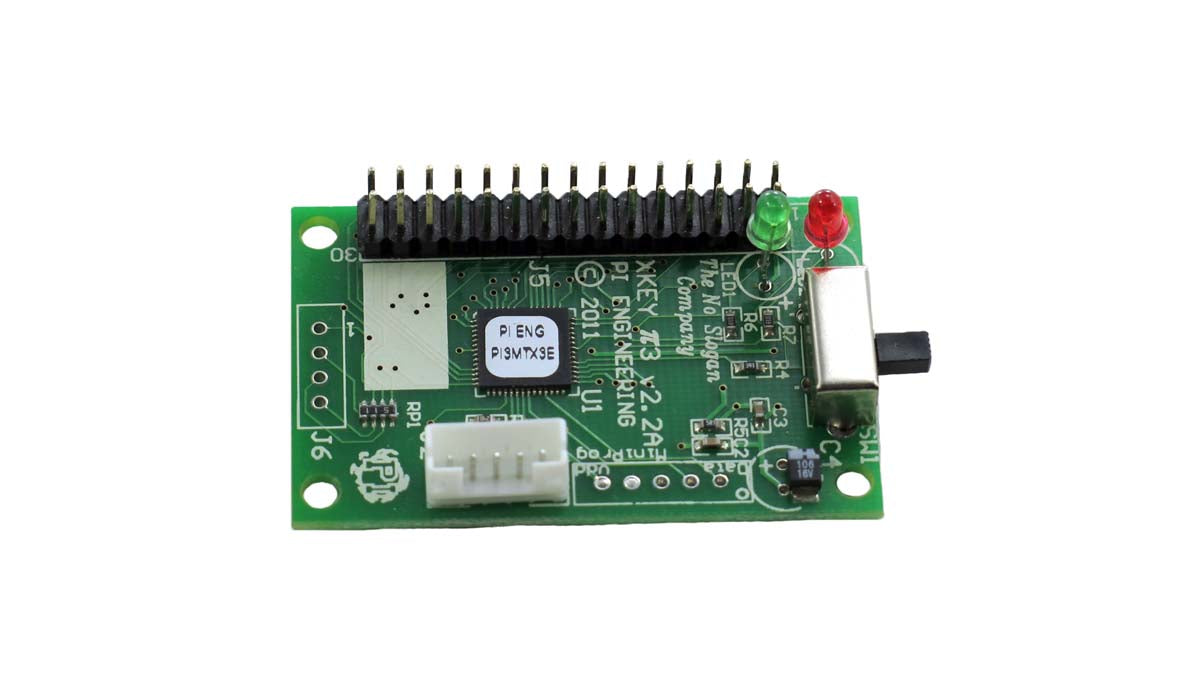

USB Encoder Board

• Up to 128 digital inputs from an 8 row by16 column matrix
• USB HID keyboard, mouse, and joystick hardware emulation
• Internal memory for hardware, resident macros for OS independent support

Unit Specifications

Connector Type: USB “A” plug

Input Connector: 0.1" double row, 30 pin female
header receptacle (not included)

Number of Inputs: 128 possible matrix points
(switches)

Dimensions: 2" x 1.3" x 0.58", (50.8mm
x 33mm x 15mm)

Weight: 2.56 oz. (73 grams)

Cord Length: 8’ (2.44 m)

Power Source: USB port power, nominal voltage = 5 vdc

Power Consumption: Low power USB device, less than 15
ma @ 5 vdc

Certifications: FCC Class B, CE

Software Mode Features

Operating System: Windows XP, Vista, 7, 8, 10

Included Software: MacroWorks 3 (Windows)

Available Software: Windows and Linux SDKs (free
download)

Layers: MW3
supports multiple layers including application specific programming

Hardware Mode Features

Hardware System: Any architecture supporting USB,
including Sun, SGI, and HP workstations

Operating System: Programming requires MacroWorks 3
for Windows XP, Vista or 7, 8, 10.Operates on any OS supporting USB including
Unix, Sun and Mac OS-X

Memory Capacity: Each matrix point is allocated 3
characters and a pool of 560 additional keystrokes is available to any switches
requiring additional characters

Memory Type: EEPROM, non volatile memory (X-keys
retains memory for over 200 years)

Layers: 2
layers – user selectable toggle and/or shift function
