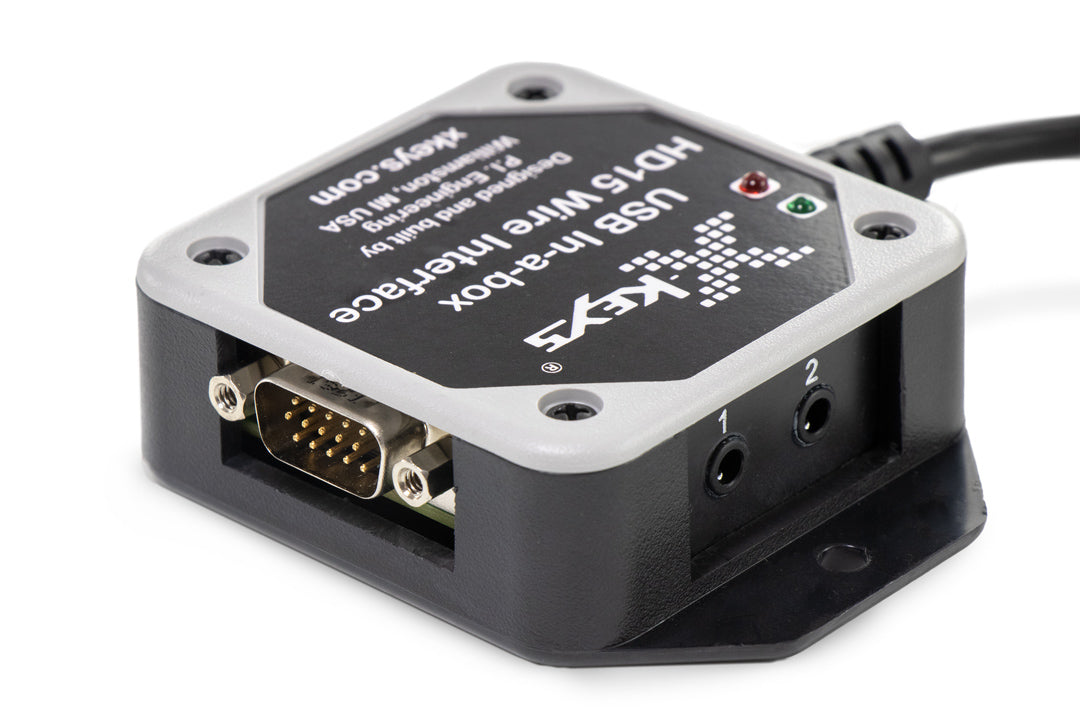

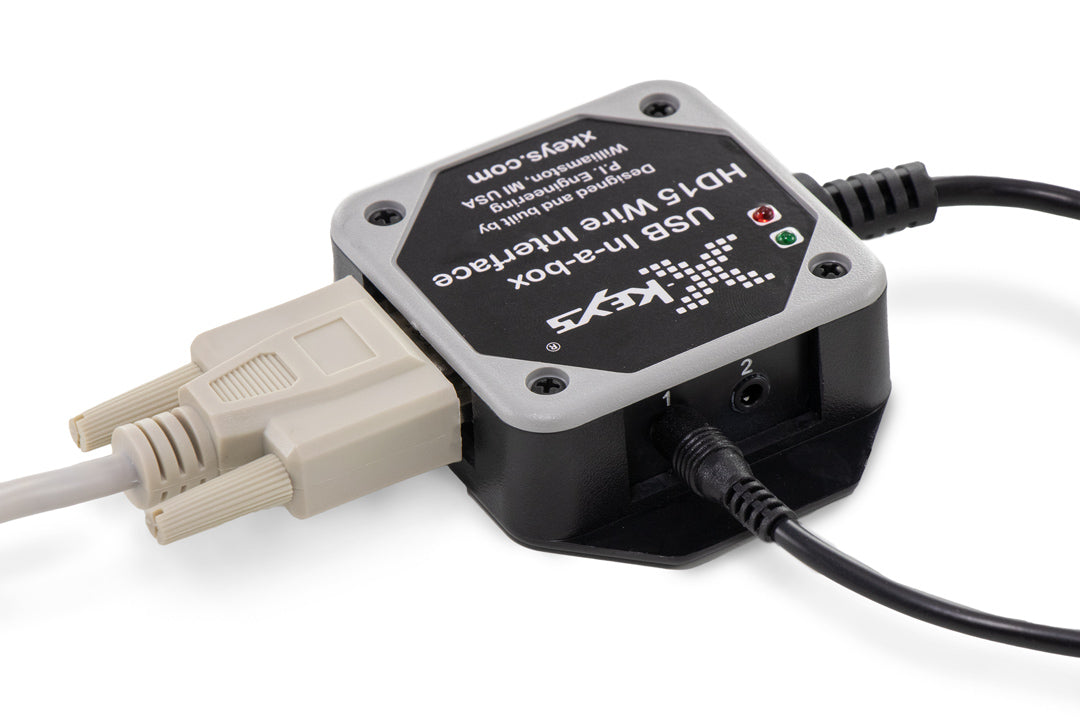

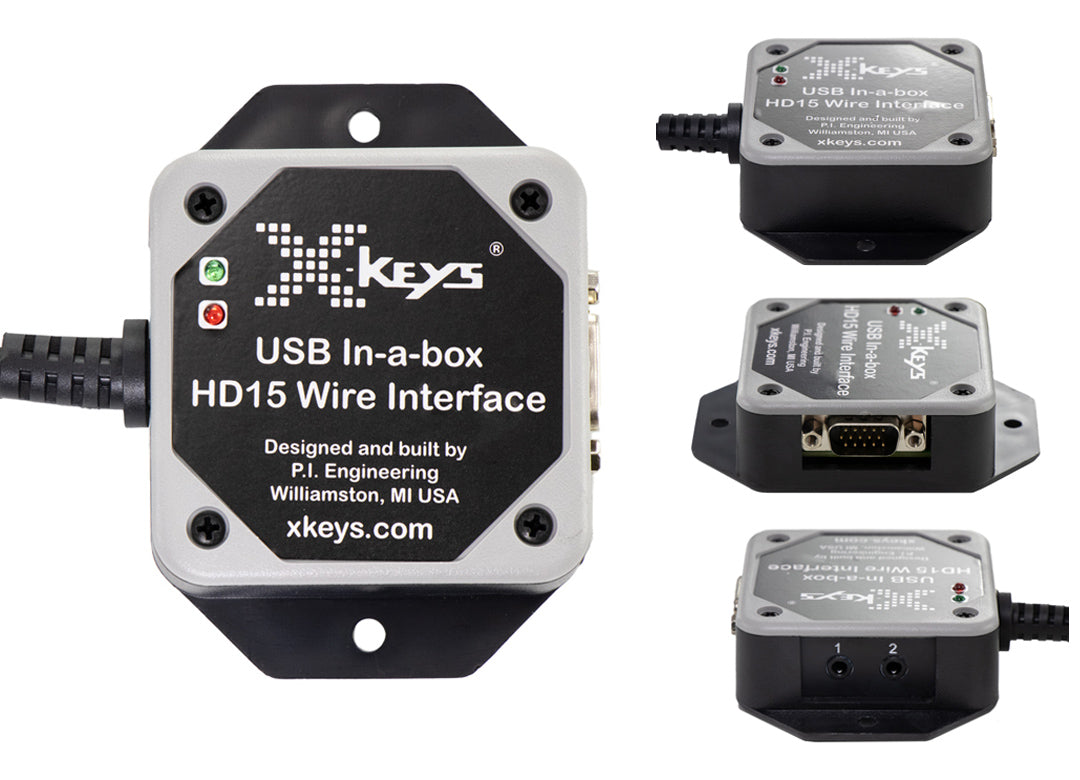

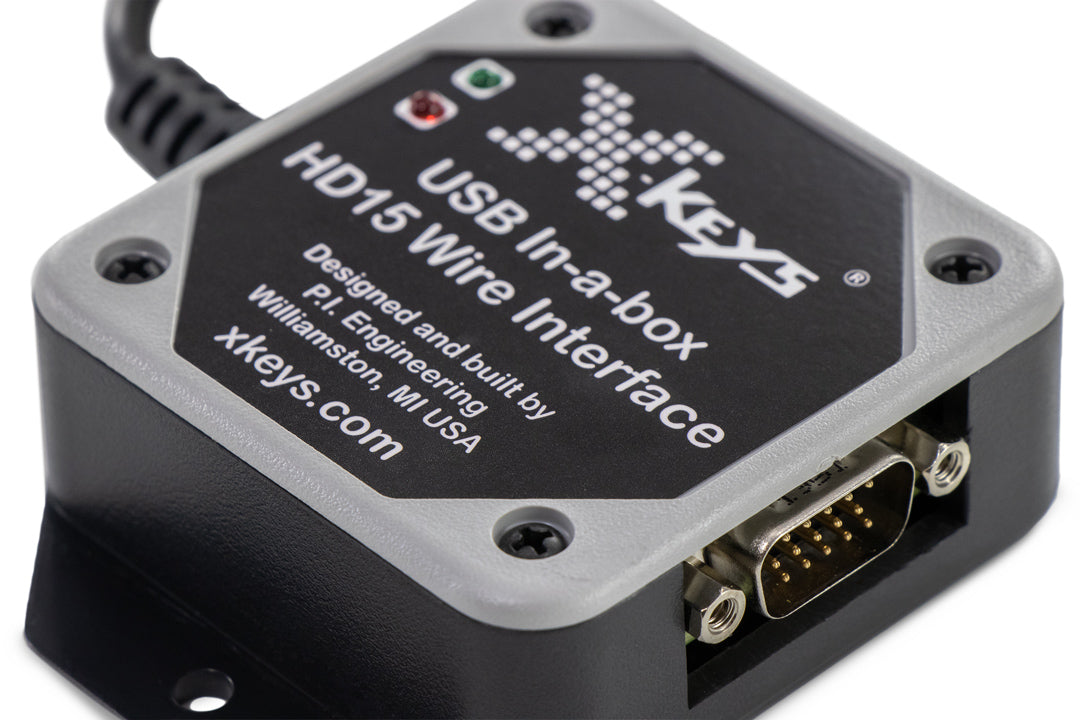

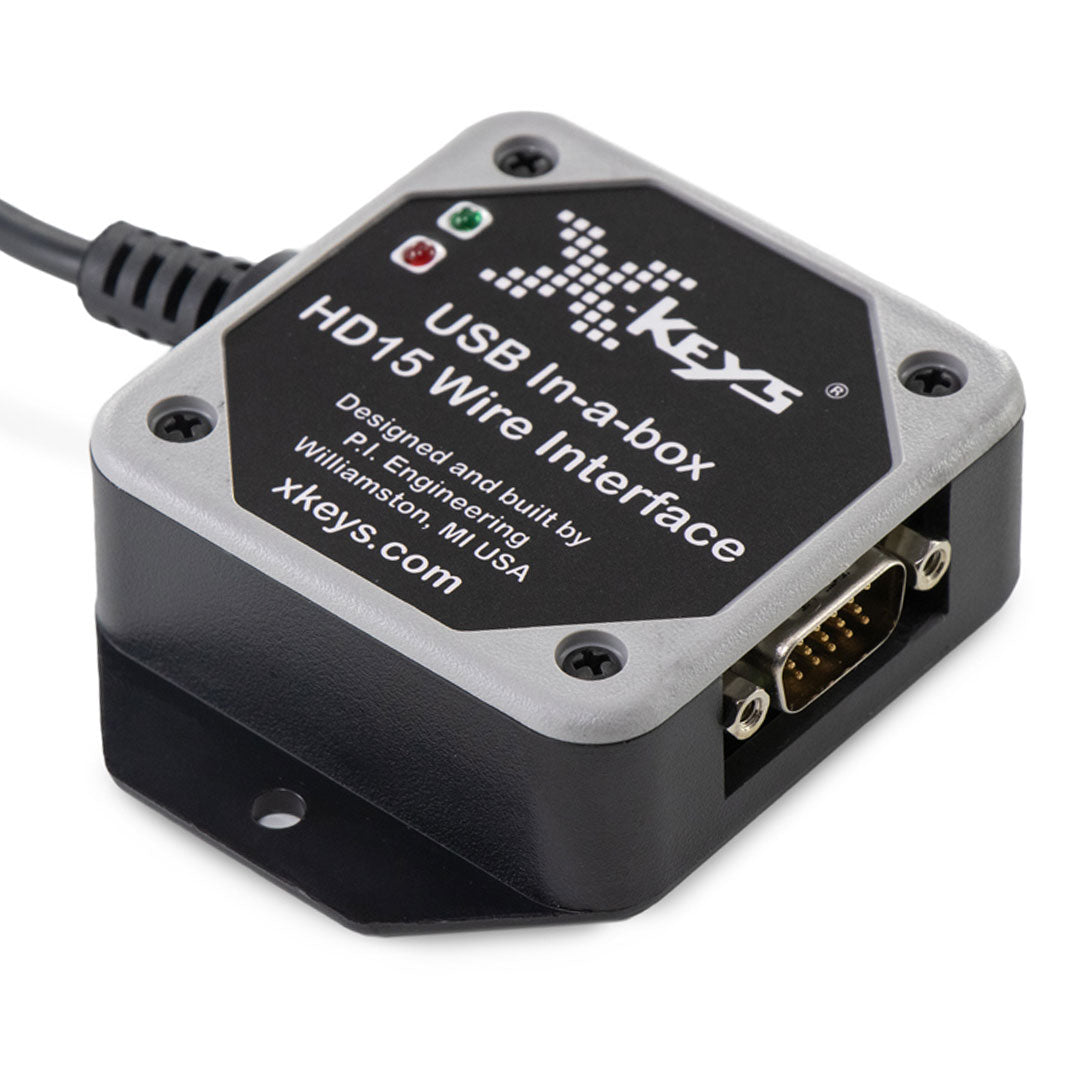

USB HD15 Wire Interface

Up to 14 digital inputs and two digital outputs

HID keyboard, mouse, and joystick hardware emulation

Free SDKs for Windows, Linux, and Android

Internal memory for hardware, resident macros for OS independent support

Operating System: Use any OS via USB HID |
Programming: Windows XP through 11, Mac OS 10.14 – Mac OS 13

Emulation Modes: HID keyboard, HID mouse, HID game controller, HID multimedia

Input Connectors: HD15 Male (compatible with HD15 extension cable), 2 x 3.5mm stereo ports

Number of Inputs:  14 Total | 10 via HD15, 4 via two 3.5mm stereo ports

Number of Outputs: 2 controllable digital outputs, able to source 10 ma @ 5vdc

Optional Accessories: HD15 to Screw Terminal Connector, Wired switches, Y cords, USB Extender

Connector: Wired USB standard “A” plug

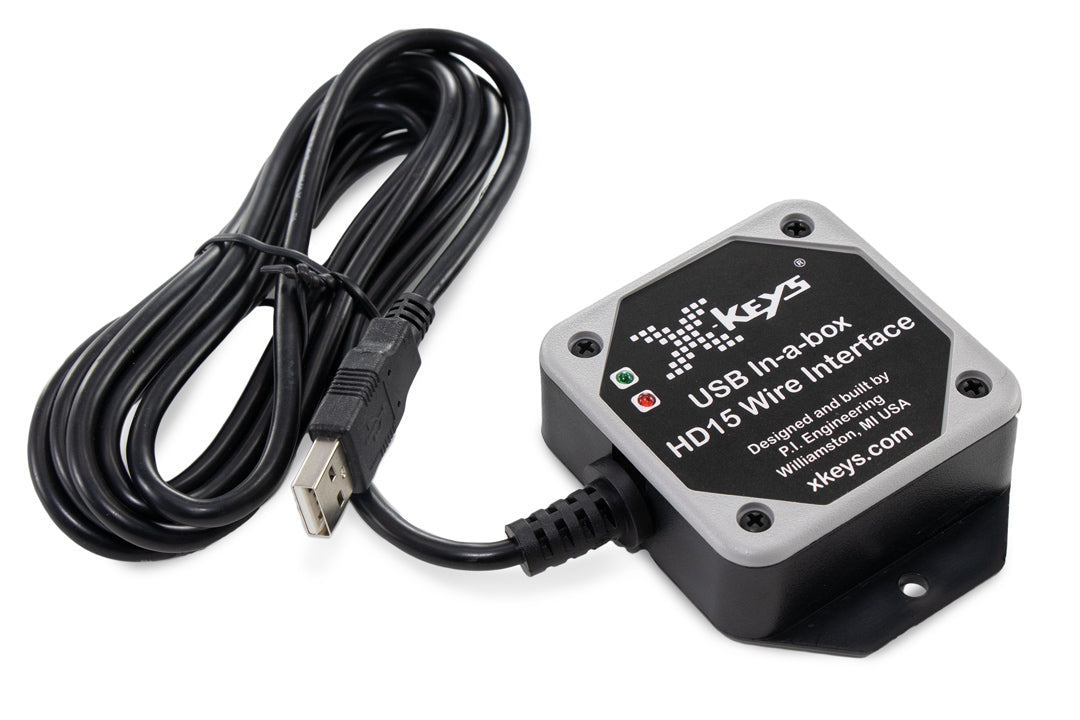

Cord Length: 118” (3 m)

Wiring Distance: Up to 1,000 feet (300m) from switch to port

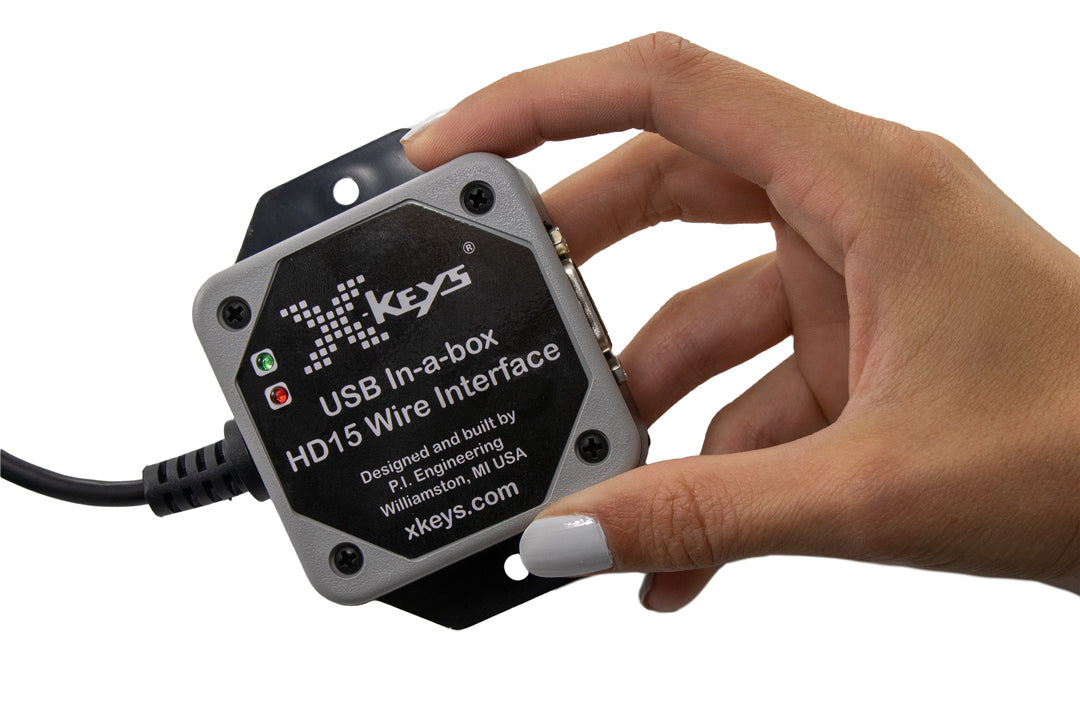

Dimensions: 2.55” x 2.55” x 1.01” (65mm x 65mm x 26mm)

Mounting: Two 0.19” DIA mounting holes, 3” O.C. (4.8mm DIA, 76mm O.C.)

Weight: 6 oz. (160 g)

USB Type: USB 1.1 compatible through 3.0 Type-c with adapter

Power Source: USB port, nominal voltage = 5 VDC

Power Consumption: 21 mA @ 5 VDC

Temperature Range: -20 to 60 °C

Memory Capacity: Approximately 1200 keystrokes or commands

Memory Type: EEPROM, non-volatile memory (X-keys retains memory for over 200 years)

Environmental Rating: IP40, typical indoor office environment

Certifications: FCC class B, CE, RoHS, WEEE compliant
