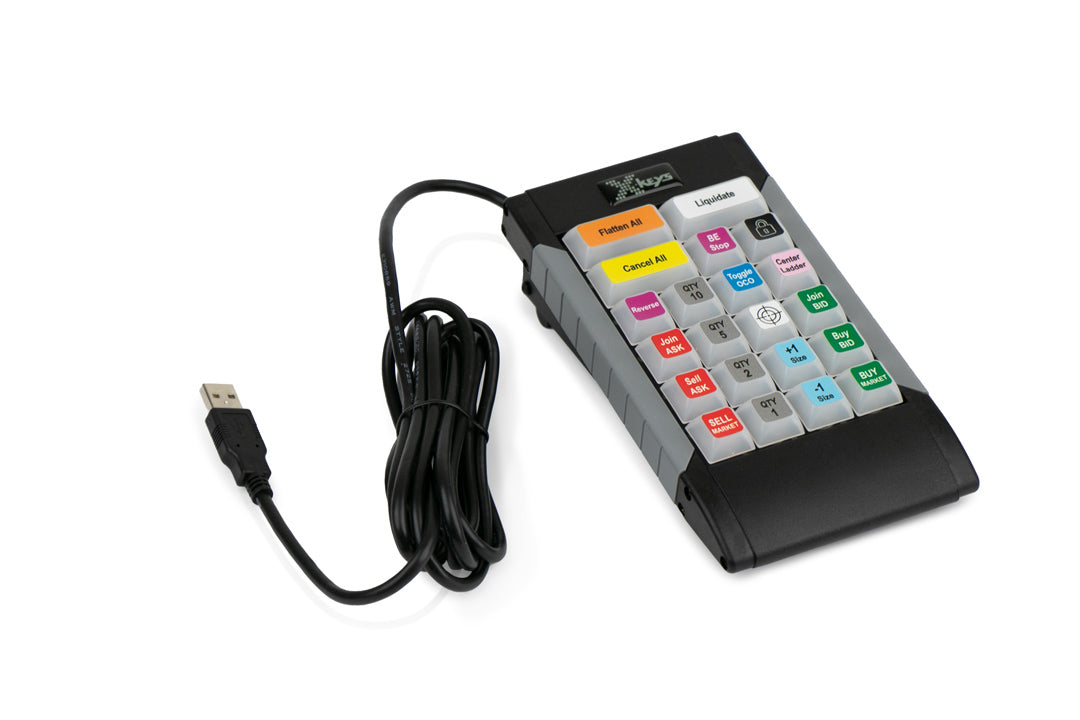

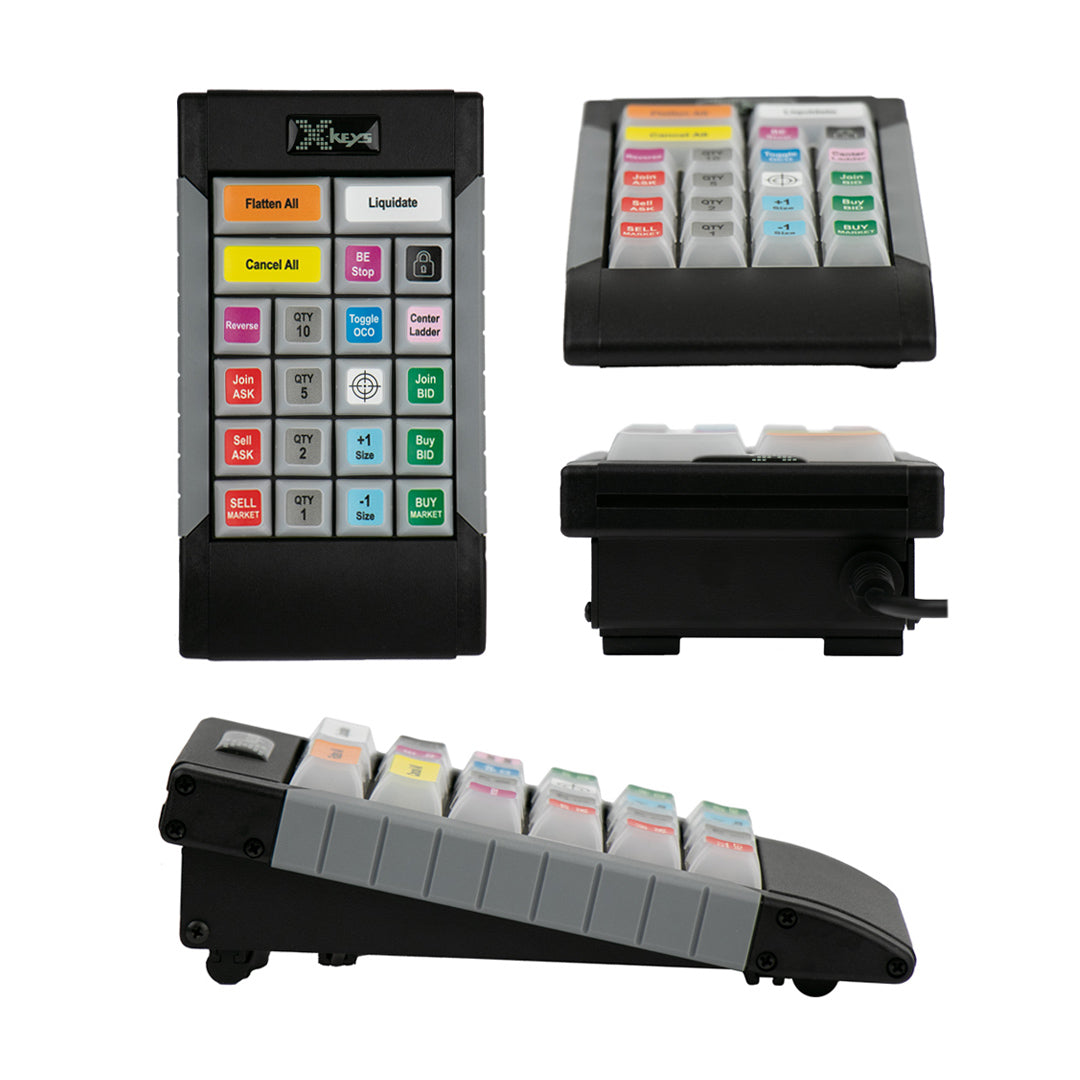

XBE-24 BEAR Trading Keypad

Designed with JBearTrades — optimized for real-world trading flow and professional execution speed.

Fully programmable via X-keys software — assign hotkeys, macros, or API commands to any button.

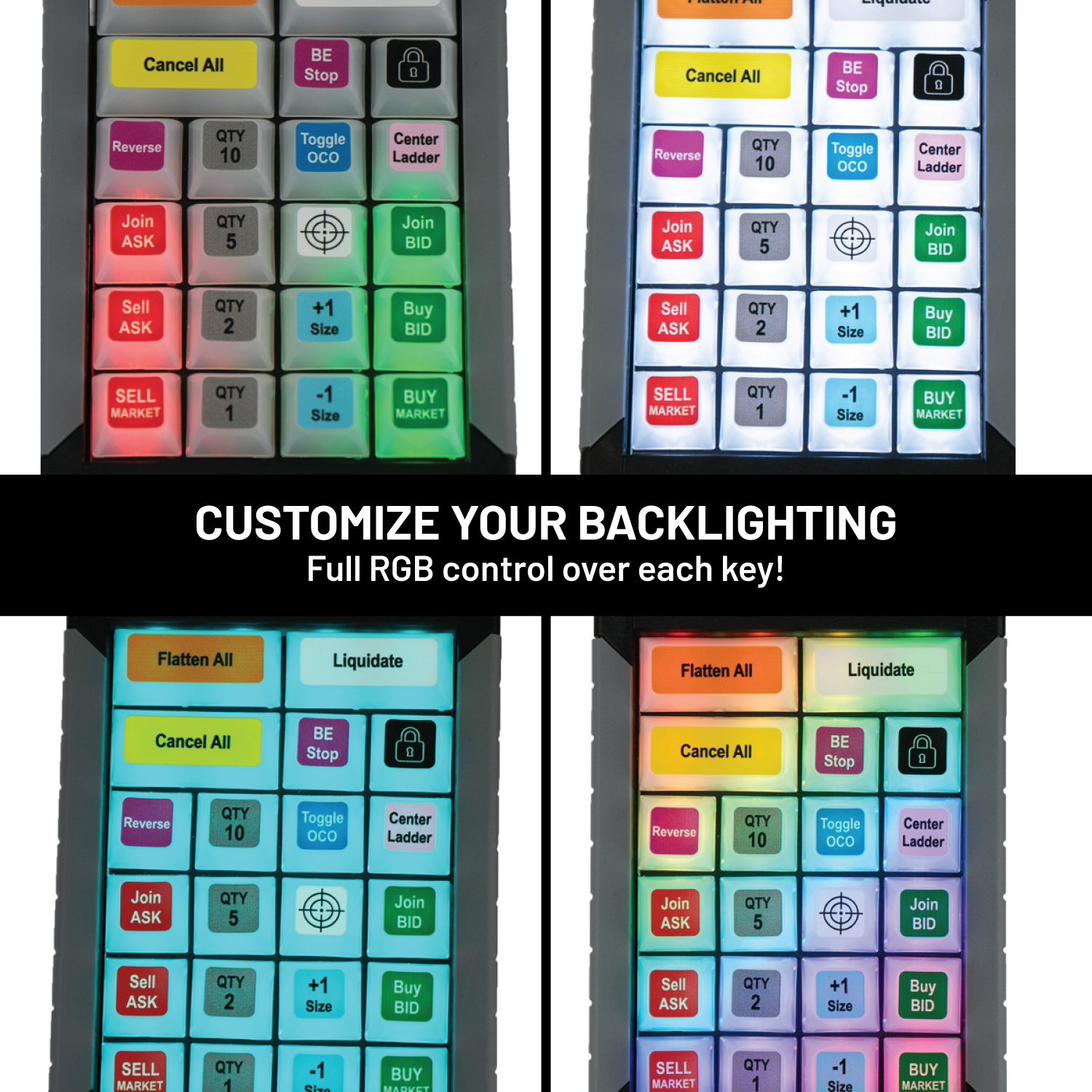

High-visibility RGB backlighting — color-code your trading logic for instant recognition.

Durable mechanical construction — designed to withstand years of daily trading activity.

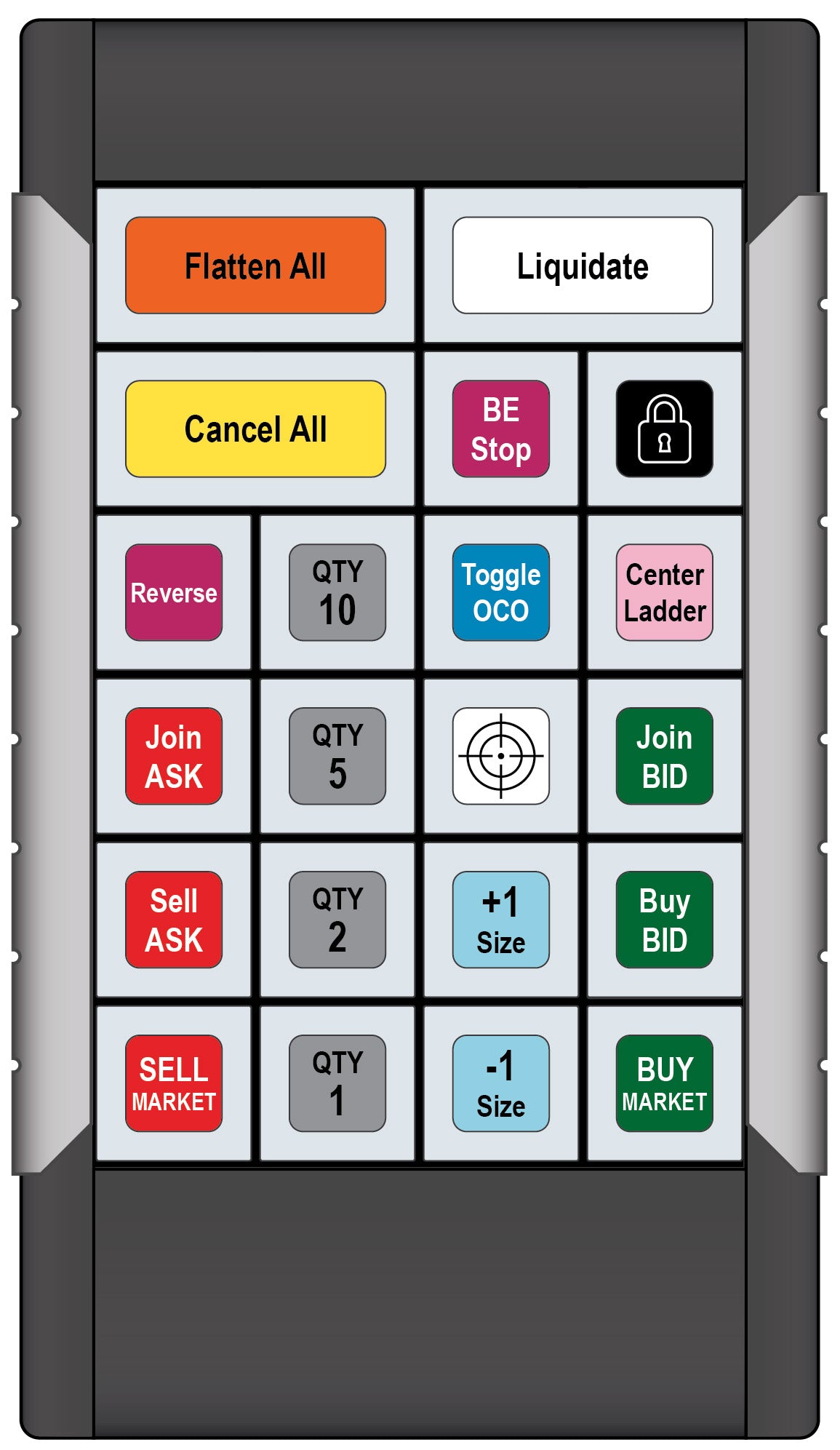

Compact, ergonomic layout — ideal for desktop or multi-monitor trading setups.

Operating System: Use any OS via USB HID | Programming: Windows XP through 11, Mac OS 10.14 – Mac OS 13

Emulation Modes: HID keyboard, HID mouse, HID game controller, HID multimedia

Switch Types: Full-travel rubber dome, carbon on gold contacts, guaranteed for over 1 million operations

Number of Keys: 24 single keys

Actuation Force: Approx. 2.5 oz (72 g) break-over, approx. 1.5 oz (42 g) hold

Keycaps: 0.625” (16 mm) square; relegendable with Cherry MX compatible stem

Key Spacing: 0.75" O.C.

Optional Keys: 2X1, 1X2, 2X2

Backlighting: 2 RGB LEDs per switch, 48 total, individually addressable

Connector: Wired USB standard “A” plug

Cord Length: 118” (3 m)

Dimensions: 7” x 3.75” x 2” (178 mm x 95 mm x 50 mm)

Weight: 19 oz. (540 g)

USB Type: USB 1.1 compatible through 3.2 Type-C with adapter

Power Source: USB port, nominal voltage = 5 VDC

Current Draw: No backlight: 18 mA; Blue backlight full: 38 mA; Red backlight full: 57 mA; All backlights: 75 mA

Temperature Range: -20 to 60 °C

Memory Capacity: Approximately 21,000 keystrokes or commands in onboard memory

Memory Type: EEPROM, non-volatile memory (X-keys retains memory for over 200 years)

Humidity: 80% Rh non-condensing

Environmental Rating: IP40, typical indoor office environment

Certifications: FCC class B, CE, Declaration of Conformity, WEEE compliant
