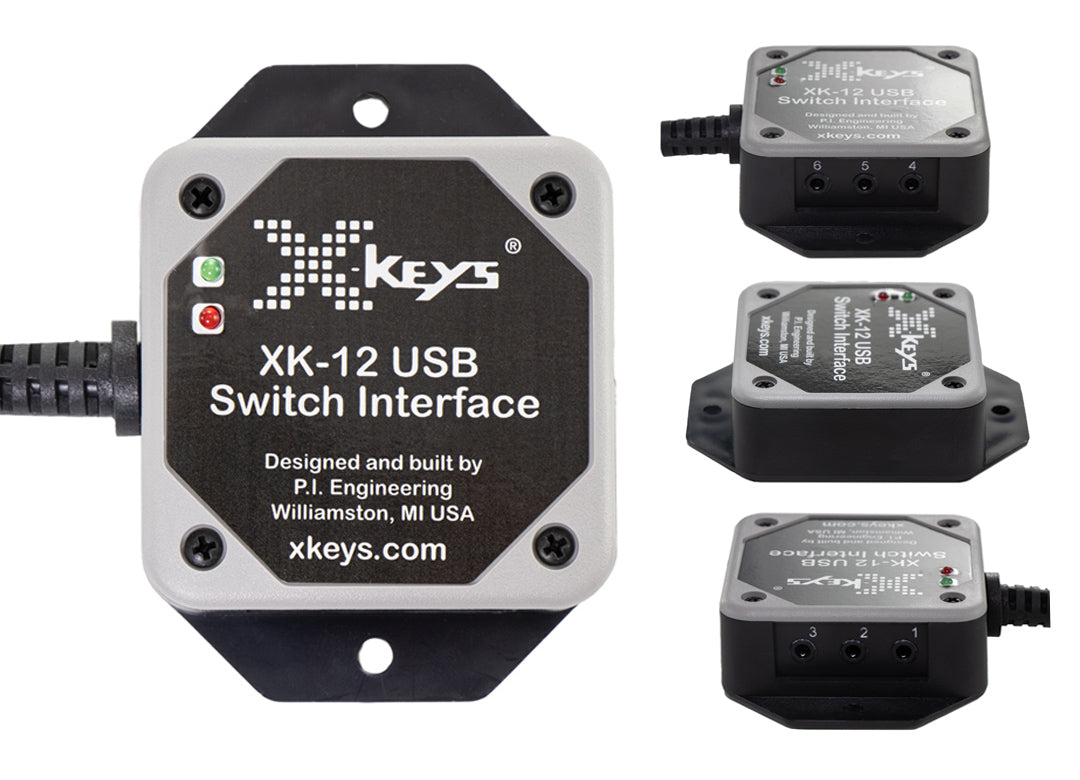

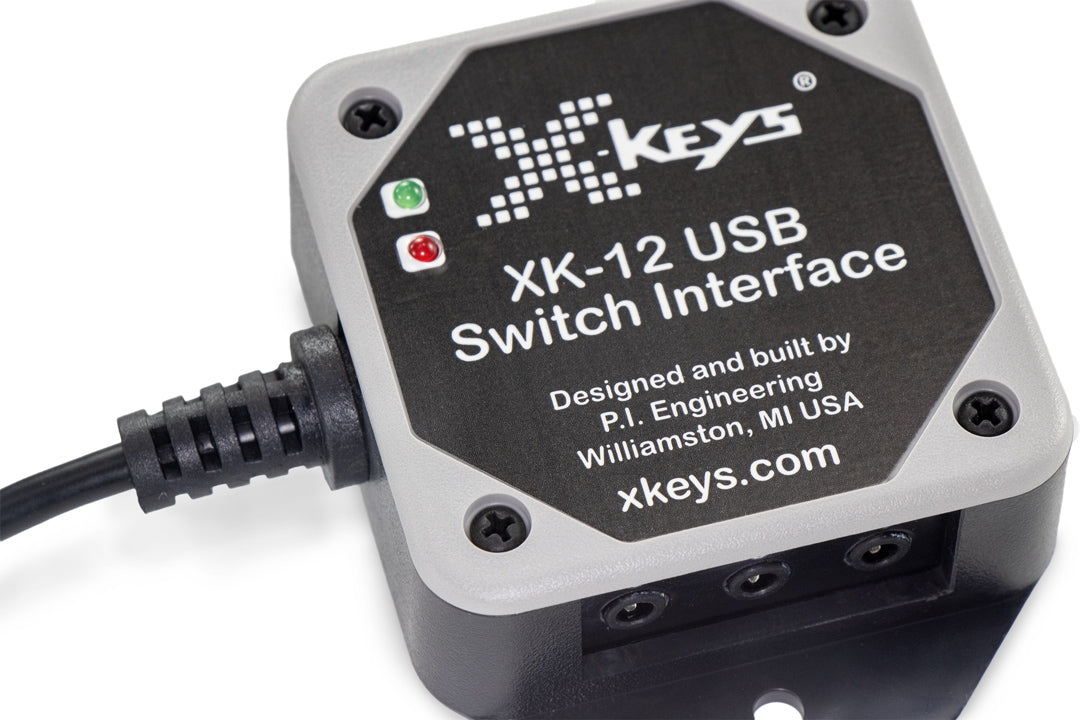

USB 12 Switch Interface

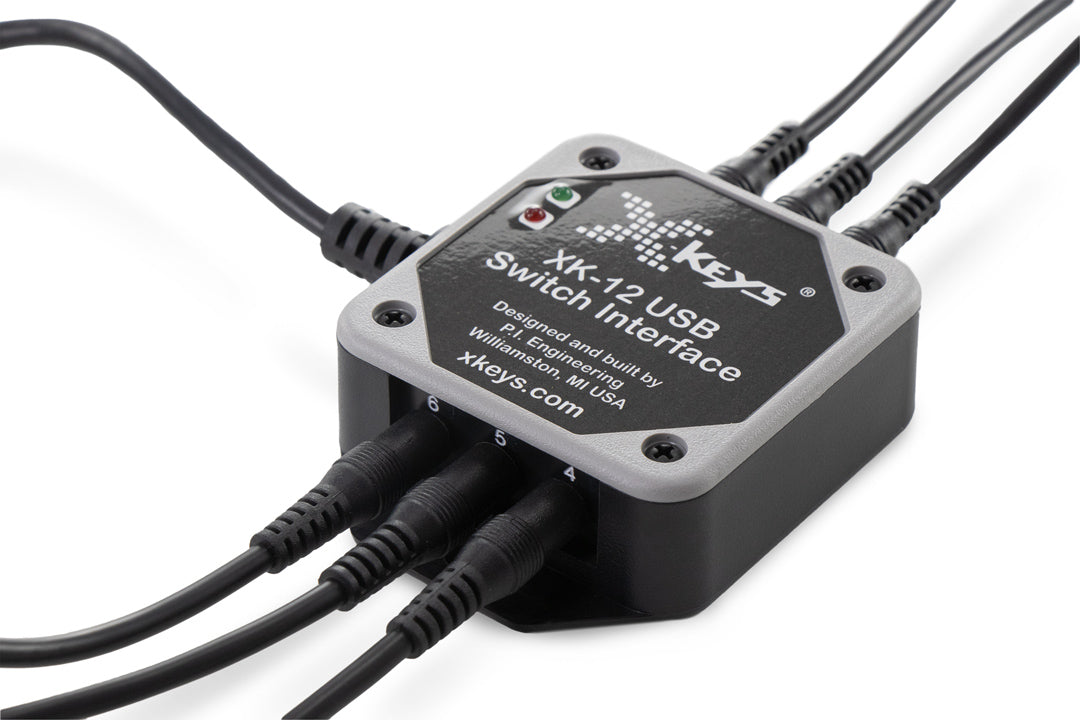

6 dual switch ports (12 switches with optional splitter cords)

Connect to the USB port just like a USB keyboard

Convenient mounting flanges

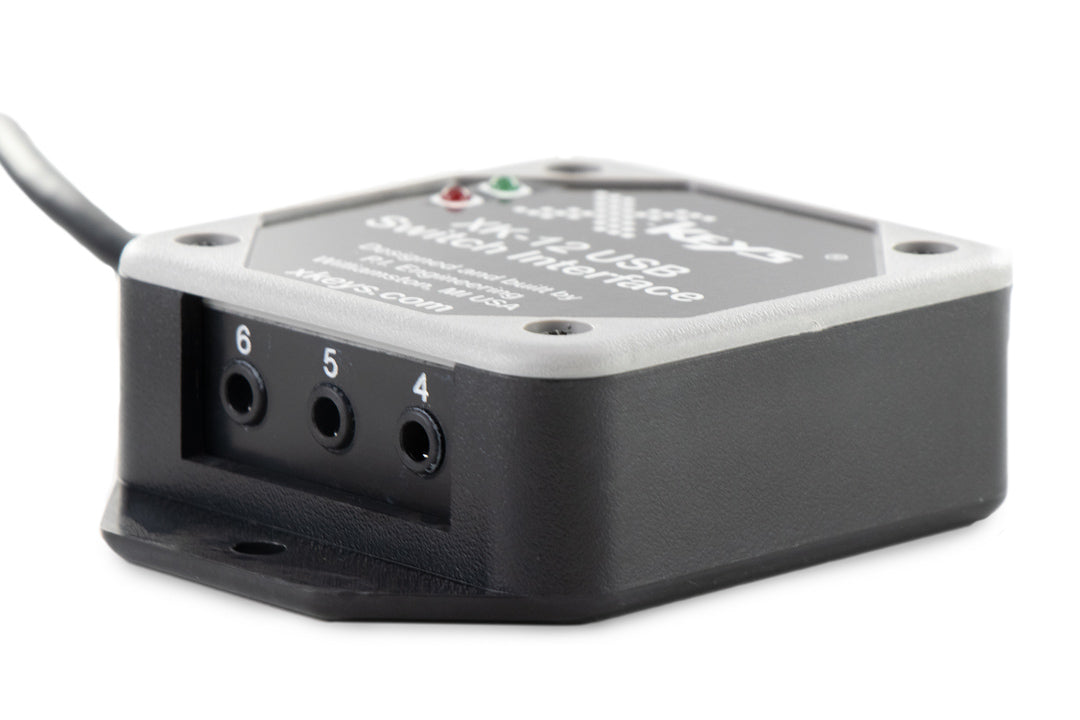

Standard 3.5mm audio type switch ports

Supports mono and stereo type switch plugs

Any contact closure can be converted to a USB HID command

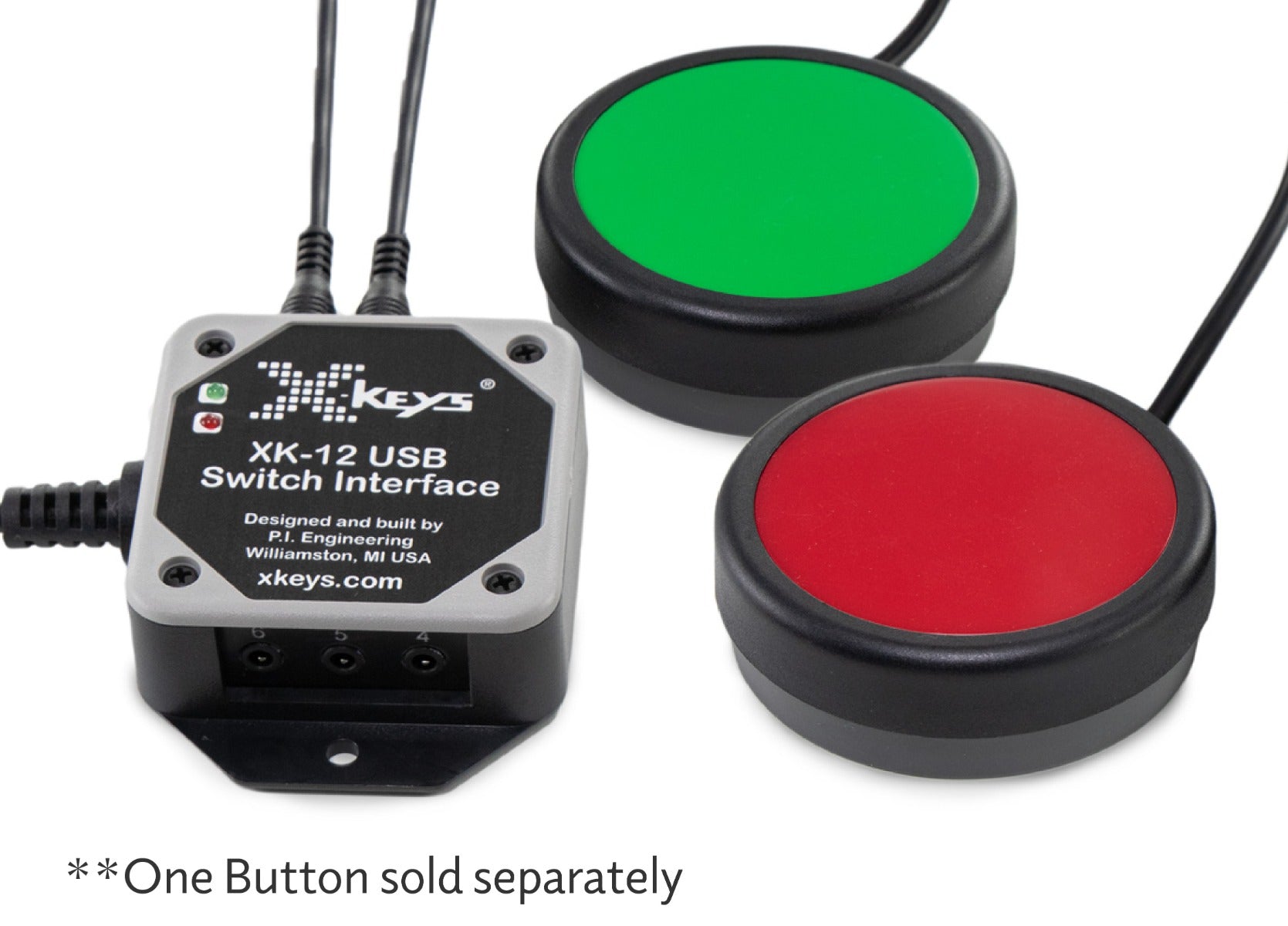

Choose from our selection of hand or foot operated switches or use your own

Operating System: Use any OS via USB HID |
Programming: Windows XP through 11, Mac OS 10.14 – Mac OS 13

Emulation Modes: HID keyboard, HID mouse, HID game controller

Port Types: 3.5mm stereo (accepts 3.5mm mono or stereo plug)

Number of Ports:  6 ports (split
to 12 with optional Y cords)

Optional Accessories: Wired switches, Y cords, extension cords, or USB
Extender

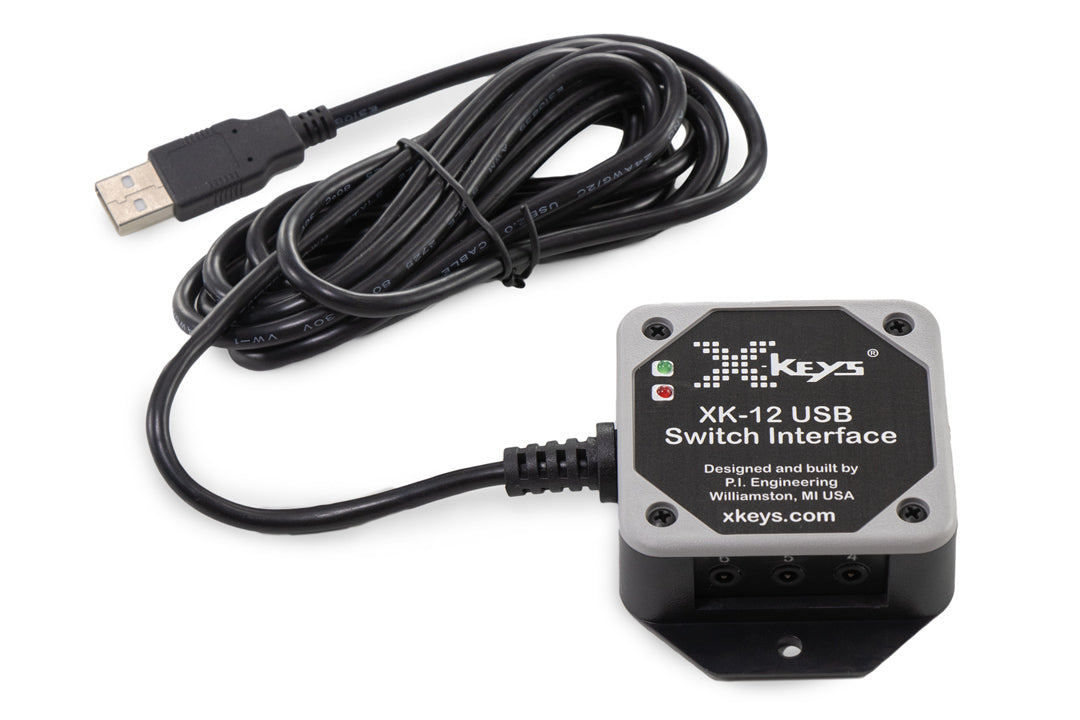

Connector: Wired USB standard “A” plug

Cord Length: 118” (3 m)

Wiring Distance: Up to 1,000 feet (300m) from switch to port

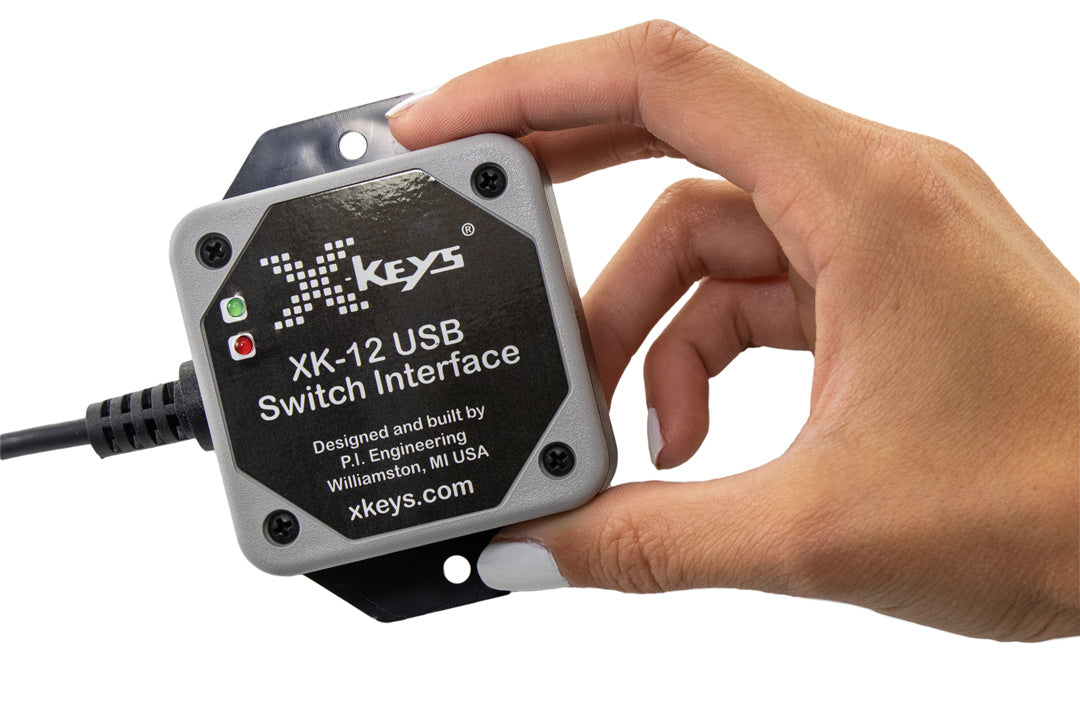

Dimensions: 2.55” x 2.55” x 1.01” (65mm x 65mm x 26mm)

Mounting: Two 0.19” DIA mounting holes, 3” O.C. (4.8mm DIA, 76mm O.C.)

Weight: 6 oz. (160 g)

USB Type: USB 1.1 compatible through 3.0 Type-c with adapter

Power Source: USB port, nominal voltage = 5 VDC

Power Consumption: 21 mA @ 5 VDC

Temperature Range: -20 to 60 °C

Memory Capacity: Approximately 1,100 keystrokes or commands

Memory Type: EEPROM, non-volatile memory (X-keys retains memory for over
200 years)

Environmental Rating: IP40, typical indoor office environment

Certifications: FCC class B, CE, Declaration of Conformity, WEEE
compliant
